How to Install and Use Kubernetes on Windows

Content

  1. Introduction
  2. Requirements
  3. Installation Procedure
  4. Conclusion

Introduction

Kubernetes is an open source container-based platform used to manage cloud resources and develop web applications. The platform can help you scale your applications or system infrastructure, automating, and deploying, among other useful things. Also, it runs on all operating systems, including windows. This means all your clusters can be managed under cloud environments regardless of your computer operating system.

This guide offers you a complete walkthrough on how to install Kubernetes for Windows 10 users. Also, the tutorial shows you how to deploy the official web GUI dashboard, to allow you to monitor and manage everything.

Let’s get started!

Requirements

In order for you to install Kubernetes in your computer system, you should pay attention to the software and hardware requirements discussed below.

Software requirements

  • Docker Desktop
  • MAC address
  • Product UUID for nodes
  • Hype-V

Hardware requirements

  • Worker node
  • Master node
  • Monitor navigation i.e mouse and keyboard

Is a must to the above requirements to have in check in order to make the installation process of the platform successful.

Installation Procedure

Step I: Set up Hyper -V

Hyper -V is a Windows virtualization software that allows you to manage your virtual machines using the command line or Microsoft GUI tool. It is simple to enable Hyper - V in your system. Follow the following steps below:

1.Open your Windows Control Panel.

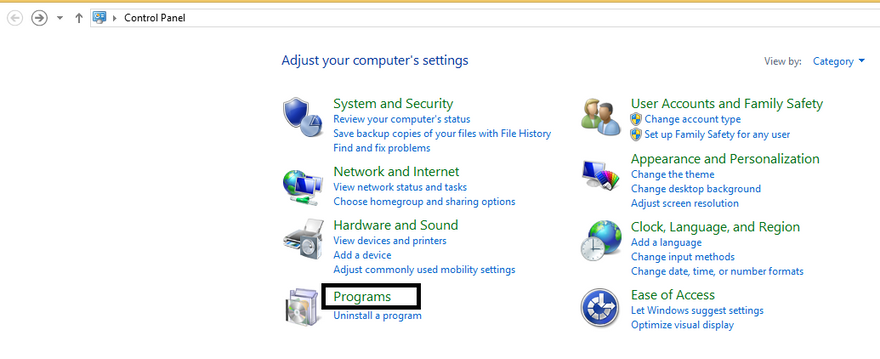

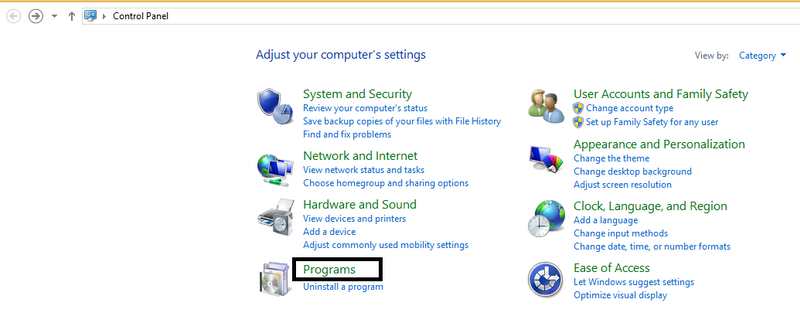

2.On the left side, select Programs.

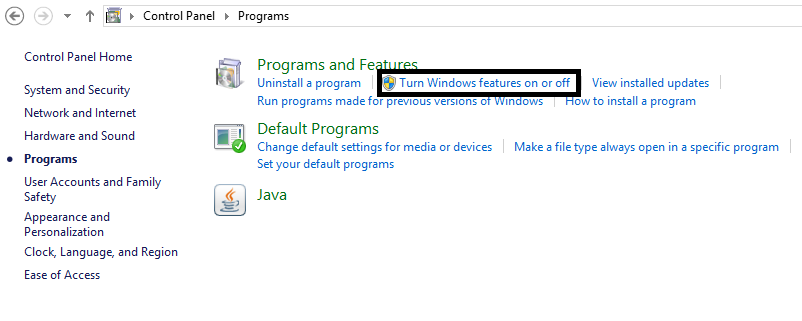

3.Then, after selecting Programs, go to Programs and features and click on Turn Windows features on or off
Image 3

Image 4

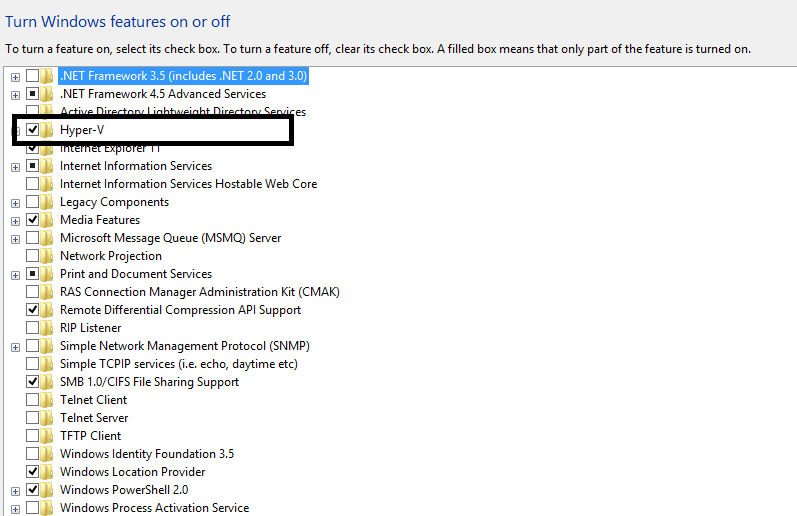

4.Check or click to tick on Hyper-V and the Hypervisor Platform for Windows

Image 5

5.Select Ok

Do not worry if you do not see anything after selecting Ok. Your system is installing the Hyper- V in the background.

To confirm if Hyper -V is enabled, open your Windows PowerShell and run the below commands.

Run as Administrator

PS C:\Windows\system32>

Enter fullscreen mode Exit fullscreen mode

The command:

Get-WindowsOptionalFeature -Online -FeatureName Microsoft-Hyper-V
Enter fullscreen mode Exit fullscreen mode

If it is enabled, you’ll see an output like this:

FeatureName: Microsoft-Hyper-V
DisplayName: Hyper-V Platform
Description: Provides the services that you can use to create and manage virtual machines and their resources.
RestartRequired: Possible
State: Enabled
CustomProperties:

Enter fullscreen mode Exit fullscreen mode

Step II: Downloading Docker for Windows

Kubernetes is a container system built on Docker. This means Kubernetes is a tool that interacts with Docker, allowing you to manage your operations efficiently.

To download Docker, simply >>click<<

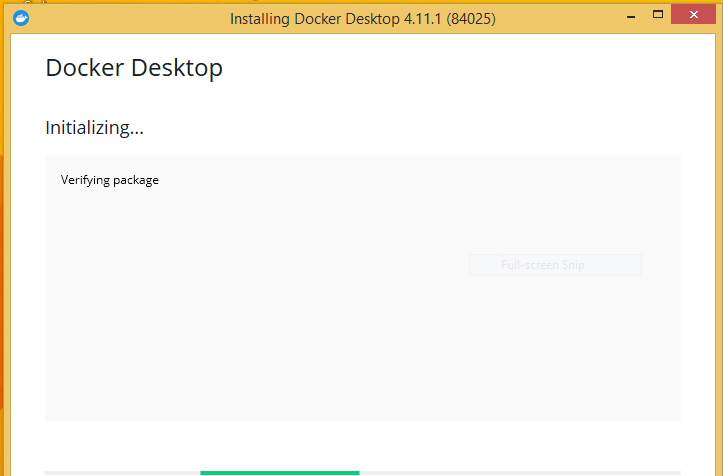

After downloading Docker, double-Click the Docker.exe file for windows to run its installer. Once the Docker installation process is complete, it will start automatically.

Image 2

Step III: Installing Kubernetes

Docker allows you to enable Kubernetes because of its Graphical User Interface (GUI) interface.

To install Kubernetes, follow the below instructions:

1.Right-click the Docker tray icon and select Properties.
2.Select "Settings" from the drop-down menu.
3.On the left panel, select “Kubernetes”
4.Enable Kubernetes and click "Apply"

Then, wait for the docker to add some dependencies and packages. ‘Installation complete!’ will pop up on your screen to proof the installation was successful.

Step IV: Installing Kubernetes Dashboard

Unfortunately Kubernetes web-based UI is not set up by default. However, it can be deployed using the CLI tool kubelctl, which enables you to interact with your cloud and manage different Pods, Clusters, and Nodes. YAML configuration file is perhaps the easiest resource to use to run Kubernetes. Get it here!

Follow the below commands to deploy the YAML configuration file:

1.Paste this to deploy it


. kubectl apply -f .\recommended.yaml

Enter fullscreen mode Exit fullscreen mode

2.Then, run the following command to confirm the YAML configuration file is up


 kubectl.exe get -f .\recommended.yaml.txt

Enter fullscreen mode Exit fullscreen mode

Step V: Accessing the Kubernetes dashboard

The dashboard can be accessed by using a default token generated during the Kubernetes installation process.

Follow the steps below:

1.Paste this command on PowerShell

((kubectl -n kube-system describe secret default | Select-String "token:") -split " +")[1]


Enter fullscreen mode Exit fullscreen mode

Don’t forget to copy the generated token on the “token” part from the command

2.Run

kubectl proxy.

Enter fullscreen mode Exit fullscreen mode

3.Open the below link on your favorite browser

http://localhost:8001/api/v1/namespaces/kubernetes-dashboard/services/https:kubernetes-dashboard:/proxy/

Enter fullscreen mode Exit fullscreen mode

4.Sign in

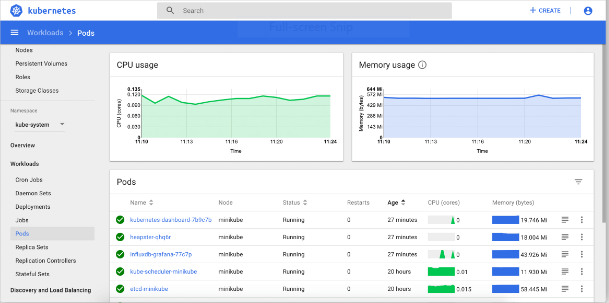

5.Finally

Image 1

Conclusion

In this tutorial, I have explained how to install Kubernetes on Windows 10. Also, I highlighted the process of enabling Hyper-V, installing Docker, and enabling the YAML configuration file.

Kubernetes offers you a great chance to monitor your systems or applications effectively. This means it is important to ensure the cluster of nodes is fully functional to Kubernetes works properly. Make sure you follow the steps properly to have an easy installation process.
