Automating Flask & PostgreSQL Deployment on KVM with Terraform & Ansible

#devops #tutorials #terraform #docker

😀 Intro

Hi, in this post, we will use Libvirt with Terraform to provision 2 KVM locally and after that, we will Deploy Flask App & PostgreSQL using Ansible.

Content

📝 Project Architecture

So we will create 2 VMs using Terraform, then deploying a flask project and the database using Ansible.

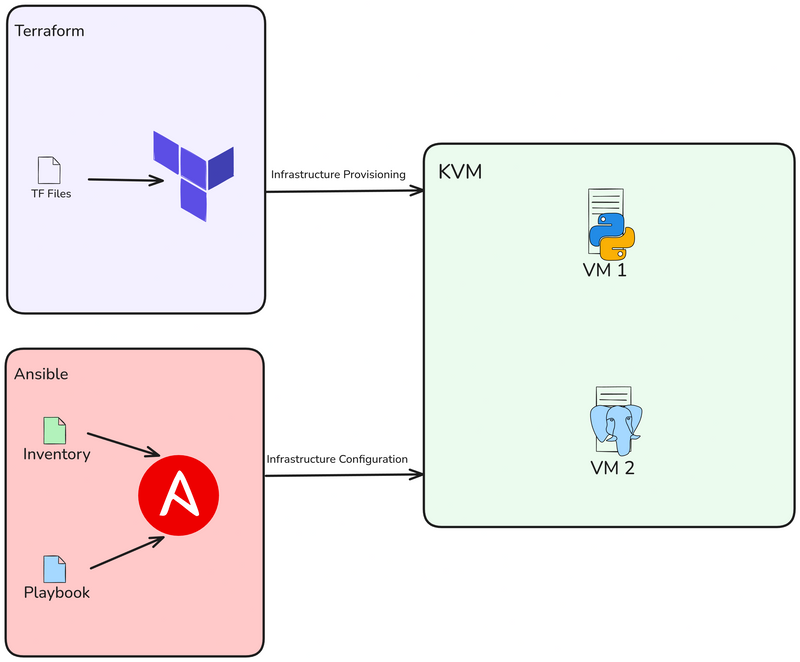

Project Architecture

🔨 Requirements

I used Ubuntu 22.04 LTS as the OS for this project. If you're using a different OS, please make the necessary adjustments when installing the required dependencies.

The major pre-requisite for this setup is KVM hypervisor. So you need to install KVM in your system. If you use Ubuntu you can follow this step:

$ sudo apt -y install bridge-utils cpu-checker libvirt-clients libvirt-daemon qemu qemu-kvm
Enter fullscreen mode Exit fullscreen mode

Execute the following command to make sure your processor supports virtualisation capabilities:

$ kvm-ok

INFO: /dev/kvm exists
KVM acceleration can be used
Enter fullscreen mode Exit fullscreen mode

Install Terraform

$ wget -O - https://apt.releases.hashicorp.com/gpg | sudo gpg --dearmor -o /usr/share/keyrings/hashicorp-archive-keyring.gpg
$ echo "deb [arch=$(dpkg --print-architecture) signed-by=/usr/share/keyrings/hashicorp-archive-keyring.gpg] https://apt.releases.hashicorp.com $(lsb_release -cs) main" | sudo tee /etc/apt/sources.list.d/hashicorp.list
$ sudo apt update && sudo apt install terraform -y
Enter fullscreen mode Exit fullscreen mode

Verify installation:

$ terraform version

Terraform v1.9.8
on linux_amd64
Enter fullscreen mode Exit fullscreen mode

Install Ansible

$ sudo apt update
$ sudo apt install software-properties-common
$ sudo add-apt-repository --yes --update ppa:ansible/ansible
$ sudo apt install ansible -y
Enter fullscreen mode Exit fullscreen mode

Verify installation:

$ ansible --version

ansible [core 2.15.1]
...
Enter fullscreen mode Exit fullscreen mode

Create KVM

we will use the libvirt provider with Terraform to deploy a KVM Virtual Machine.

Create main.tf, just specify the provider and version you want to use:

terraform {
  required_providers {
    libvirt = {
      source = "dmacvicar/libvirt"
      version = "0.8.1"
    }
  }
}

provider "libvirt" {
  uri = "qemu:///system"
}
Enter fullscreen mode Exit fullscreen mode

Thereafter, run terraform init command to initialize the environment:

$ terraform init

Initializing the backend...
Initializing provider plugins...
- Reusing previous version of hashicorp/template from the dependency lock file
- Reusing previous version of dmacvicar/libvirt from the dependency lock file
- Reusing previous version of hashicorp/null from the dependency lock file
- Using previously-installed hashicorp/template v2.2.0
- Using previously-installed dmacvicar/libvirt v0.8.1
- Using previously-installed hashicorp/null v3.2.3

Terraform has been successfully initialized!

You may now begin working with Terraform. Try running "terraform plan" to see
any changes that are required for your infrastructure. All Terraform commands
should now work.

If you ever set or change modules or backend configuration for Terraform,
rerun this command to reinitialize your working directory. If you forget, other
commands will detect it and remind you to do so if necessary.
Enter fullscreen mode Exit fullscreen mode

Now create our variables.tf. This variables.tf file defines inputs for the libvirt disk pool path, the Ubuntu 20.04 image URL as OS for the VMs , and a list of VM hostnames.

variable "libvirt_disk_path" {
  description = "path for libvirt pool"
  default     = "default"
}

variable "ubuntu_20_img_url" {
  description = "ubuntu 20.04 image"
  default     = "https://cloud-images.ubuntu.com/releases/focal/release/ubuntu-20.04-server-cloudimg-amd64.img"
}

variable "vm_hostnames" {
  description = "List of VM hostnames"
  default     = ["vm1", "vm2"]
}
Enter fullscreen mode Exit fullscreen mode

Let's update our main.tf:

resource "null_resource" "cache_image" {
  provisioner "local-exec" {
    command = "wget -O /tmp/ubuntu-20.04.qcow2 ${var.ubuntu_20_img_url}"
  }
}

resource "libvirt_volume" "base" {
  name   = "base.qcow2"
  source = "/tmp/ubuntu-20.04.qcow2"
  pool   = var.libvirt_disk_path
  format = "qcow2"
  depends_on = [null_resource.cache_image]
}

resource "libvirt_volume" "ubuntu20-qcow2" {
  count          = length(var.vm_hostnames)
  name           = "ubuntu20-${count.index}.qcow2"
  base_volume_id = libvirt_volume.base.id
  pool           = var.libvirt_disk_path
  size           = 10737418240  # 10GB
}

data "template_file" "user_data" {
  count    = length(var.vm_hostnames)
  template = file("${path.module}/config/cloud_init.yml")
}

data "template_file" "network_config" {
  count    = length(var.vm_hostnames)
  template = file("${path.module}/config/network_config.yml")
}

resource "libvirt_cloudinit_disk" "commoninit" {
  count          = length(var.vm_hostnames)
  name           = "commoninit-${count.index}.iso"
  user_data      = data.template_file.user_data[count.index].rendered
  network_config = data.template_file.network_config[count.index].rendered
  pool           = var.libvirt_disk_path
}

resource "libvirt_domain" "domain-ubuntu" {
  count  = length(var.vm_hostnames)
  name   = var.vm_hostnames[count.index]
  memory = "1024"
  vcpu   = 1

  cloudinit = libvirt_cloudinit_disk.commoninit[count.index].id

  network_interface {
    network_name   = "default"
    wait_for_lease = true
    hostname       = var.vm_hostnames[count.index]
  }

  console {
    type        = "pty"
    target_port = "0"
    target_type = "serial"
  }

  console {
    type        = "pty"
    target_type = "virtio"
    target_port = "1"
  }

  disk {
    volume_id = libvirt_volume.ubuntu20-qcow2[count.index].id
  }

  graphics {
    type        = "spice"
    listen_type = "address"
    autoport    = true
  }
}
Enter fullscreen mode Exit fullscreen mode

the script will provisions multiple KVM VMs using the Libvirt provider. It downloads an Ubuntu 20.04 base image, clones it for each VM, configures cloud-init for user and network settings, and deploys VMs with specified hostnames, 1GB memory, and SPICE graphics. The setup dynamically adapts based on the number of hostnames provided in var.vm_hostnames.

As I've mentioned, I'm using cloud-init, so lets setup the network config and cloud init under the config directory:

$ mkdir config/
Enter fullscreen mode Exit fullscreen mode

Then create our config/cloud_init.yml, just make sure that you configure your public ssh key for ssh access in the config:

#cloud-config
runcmd:
  - sed -i '/PermitRootLogin/d' /etc/ssh/sshd_config
  - echo "PermitRootLogin yes" >> /etc/ssh/sshd_config
  - systemctl restart sshd
ssh_pwauth: true
disable_root: false
chpasswd:
  list: |
    root:cloudy24
  expire: false
users:
  - name: ubuntu
    gecos: ubuntu
    groups:
      - sudo
    sudo:
      - ALL=(ALL) NOPASSWD:ALL
    home: /home/ubuntu
    shell: /bin/bash
    lock_passwd: false
    ssh_authorized_keys:
      - ssh-rsa AAAA...
Enter fullscreen mode Exit fullscreen mode

And then network config, in config/network_config.yml:

version: 2
ethernets:
  ens3:
    dhcp4: true
Enter fullscreen mode Exit fullscreen mode

Our project structure should look like this:

$ tree
.
├── config
│   ├── cloud_init.yml
│   └── network_config.yml
├── main.tf
└── variables.tf
Enter fullscreen mode Exit fullscreen mode

Now run a plan, to see what will be done:

$  terraform plan

data.template_file.user_data[1]: Reading...
data.template_file.user_data[0]: Reading...
data.template_file.network_config[1]: Reading...
data.template_file.network_config[0]: Reading...
...

Plan: 8 to add, 0 to change, 0 to destroy
Enter fullscreen mode Exit fullscreen mode

And run terraform apply to run our deployment:

$ terraform apply

...
null_resource.cache_image: Creation complete after 10m36s [id=4239391010009470471]
libvirt_volume.base: Creating...
libvirt_volume.base: Creation complete after 3s [id=/var/lib/libvirt/images/base.qcow2]
libvirt_volume.ubuntu20-qcow2[1]: Creating...
libvirt_volume.ubuntu20-qcow2[0]: Creating...
libvirt_volume.ubuntu20-qcow2[1]: Creation complete after 0s [id=/var/lib/libvirt/images/ubuntu20-1.qcow2]
libvirt_volume.ubuntu20-qcow2[0]: Creation complete after 0s [id=/var/lib/libvirt/images/ubuntu20-0.qcow2]
libvirt_domain.domain-ubuntu[1]: Creating...
...

libvirt_domain.domain-ubuntu[1]: Creation complete after 51s [id=6221f782-48b7-49a4-9eb9-fc92970f06a2]

Apply complete! Resources: 8 added, 0 changed, 0 destroyed
Enter fullscreen mode Exit fullscreen mode

Verify VM creation using virsh command:

$ virsh list

 Id   Name   State
----------------------
 1    vm1    running
 2    vm2    running
Enter fullscreen mode Exit fullscreen mode

Get instances IP address:

$ virsh net-dhcp-leases --network default

Expiry Time           MAC address         Protocol   IP address          Hostname   Client ID or DUID
-----------------------------------------------------------------------------------------------------------------------------------------------
2024-12-09 19:50:00   52:54:00:2e:0e:86   ipv4       192.168.122.19/24   vm1        ff:b5:5e:67:ff:00:02:00:00:ab:11:b0:43:6a:d8:bc:16:30:0d
2024-12-09 19:50:00   52:54:00:86:d4:ca   ipv4       192.168.122.15/24   vm2        ff:b5:5e:67:ff:00:02:00:00:ab:11:39:24:8c:4a:7e:6a:dd:78
Enter fullscreen mode Exit fullscreen mode

Try to access the vm using ubuntu user:

$ ssh ubuntu@192.168.122.15

The authenticity of host '192.168.122.15 (192.168.122.15)' can't be established.
ED25519 key fingerprint is SHA256:Y20zaCcrlOZvPTP+/qLLHc7vJIOca7QjTinsz9Bj6sk.
This key is not known by any other names
Are you sure you want to continue connecting (yes/no/[fingerprint])? yes
Warning: Permanently added '192.168.122.15' (ED25519) to the list of known hosts.
Welcome to Ubuntu 20.04.6 LTS (GNU/Linux 5.4.0-200-generic x86_64)
...

ubuntu@ubuntu:~$
Enter fullscreen mode Exit fullscreen mode

Create Ansible Playbook

Now let's create the Ansible Playbook to deploy Flask & Postgresql on Docker. First you need to create ansible directory and ansible.cfg file:

$ mkdir ansible && cd ansible
Enter fullscreen mode Exit fullscreen mode
[defaults]
inventory = hosts
host_key_checking = True
deprecation_warnings = False
collections = ansible.posix, community.general, community.postgresql
Enter fullscreen mode Exit fullscreen mode

Then create inventory file called hosts:

[vm1]
192.168.122.19 ansible_user=ubuntu

[vm2]
192.168.122.15 ansible_user=ubuntu
Enter fullscreen mode Exit fullscreen mode

checking our VMs using ansible ping command:

$ ansible -m ping all

192.168.122.15 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
192.168.122.19 | SUCCESS => {
    "ansible_facts": {
        "discovered_interpreter_python": "/usr/bin/python3"
    },
    "changed": false,
    "ping": "pong"
}
Enter fullscreen mode Exit fullscreen mode

Now create playbook.yml and roles, this playbook will install and configure Docker, Flask and PostgreSQL:

---
- name: Deploy Flask
  hosts: vm1
  become: true
  remote_user: ubuntu
  roles:
    - docker
    - flask

- name: Deploy Postgresql
  hosts: vm2
  become: true
  remote_user: ubuntu
  roles:
    - docker
    - psql
Enter fullscreen mode Exit fullscreen mode

Playbook to install Docker

Now create new directory called roles/docker:

$ mkdir roles
$ mkdir docker
Enter fullscreen mode Exit fullscreen mode

Create a new directory in docker called tasks, then create new file main.yml. This file will install Docker & Docker Compose:

$ mkdir docker/tasks
$ vim main.yml
Enter fullscreen mode Exit fullscreen mode
---
- name: Run update
  ansible.builtin.apt:
    name: aptitude
    state: latest
    update_cache: true

- name: Install dependencies
  ansible.builtin.apt:
    name:
      - net-tools
      - apt-transport-https
      - ca-certificates
      - curl
      - software-properties-common
      - python3-pip
      - virtualenv
      - python3-setuptools
      - gnupg-agent
      - autoconf
      - dpkg-dev
      - file
      - g++
      - gcc
      - libc-dev
      - make
      - pkg-config
      - re2c
      - wget
    state: present
    update_cache: true

- name: Add Docker GPG apt Key
  ansible.builtin.apt_key:
    url: https://download.docker.com/linux/ubuntu/gpg
    state: present

- name: Add repository into sources list
  ansible.builtin.apt_repository:
    repo: deb [arch=amd64] https://download.docker.com/linux/ubuntu {{ ansible_lsb.codename }} stable
    state: present
    filename: docker

- name: Install Docker
  ansible.builtin.apt:
    name:
      - docker-ce
      - docker-ce-cli
    state: present
    update_cache: true

- name: Add non-root to docker group
  user:
    name: ubuntu
    groups: [docker]
    append: true

- name: Install Docker module for Python
  ansible.builtin.pip:
    name: docker

- name: Install Docker-Compose
  ansible.builtin.get_url:
    url: https://github.com/docker/compose/releases/download/1.29.2/docker-compose-Linux-x86_64
    dest: /usr/local/bin/docker-compose
    mode: '755'

- name: Create Docker-Compose symlink
  ansible.builtin.command:
    cmd: ln -s /usr/local/bin/docker-compose /usr/bin/docker-compose
    creates: /usr/bin/docker-compose

- name: Restart Docker
  ansible.builtin.service:
    name: docker
    state: restarted
    enabled: true
Enter fullscreen mode Exit fullscreen mode

Playbook to install and configure postgresql

Then create new directory called psql, create subdirectory called vars, tempalates & tasks:

$ mkdir psql
$ mkdir psql/vars
$ mkdir psql/templates
$ mkdir psql/tasks
Enter fullscreen mode Exit fullscreen mode

After that, in vars, create main.yml. These are variables used to set username, passwords, etc:

---
db_port: 5433
db_user: admin
db_password: dbPassword
db_name: todo
Enter fullscreen mode Exit fullscreen mode

Next, we will create jinja file called docker-compose.yml.j2. With this file we will create postgresql container:

version: '3.7'
services:
  postgres:
      image: postgres:13
      container_name: db
      restart: unless-stopped
      ports:
        - {{ db_port }}:5432
      networks:
        - flask_network
      environment:
        - POSTGRES_USER={{ db_user }}
        - POSTGRES_PASSWORD={{ db_password }}
        - POSTGRES_DB={{ db_name }}
      volumes:
        - postgres_data:/var/lib/postgresql/data
networks:
  flask_network:

volumes:
  postgres_data:
Enter fullscreen mode Exit fullscreen mode

Next, create main.yml to tasks. So we will copy docker-compose.yml.j2 and run using docker compose:

---
- name: Add Postgresql Compose
  ansible.builtin.template:
    src: docker-compose.yml.j2
    dest: /home/ubuntu/docker-compose.yml
    mode: preserve

- name: Docker-compose up
  ansible.builtin.shell: docker-compose up -d --build
  args:
    chdir: /home/ubuntu
Enter fullscreen mode Exit fullscreen mode

Playbook to deploy Flask App

First, you need to create directory called flask, then create sub-directory again:

$ mkdir flask
$ mkdir flask/vars
$ mkdir flask/templates
$ mkdir flask/tasks
Enter fullscreen mode Exit fullscreen mode

Next, add main.yml to vars. This file refer to posgtresql variable before, with addition IP address of VM2(database VM):

---
db_port: 5433
db_user: admin
db_password: dbPassword
db_name: todo
db_host:  192.168.122.15
Enter fullscreen mode Exit fullscreen mode

Next, create config.py.j2 to templates. This file will replace the old config file from Flask project:

DEV_DB = 'sqlite:///task.db'

pg_user = "{{ db_user }}"
pg_pass = "{{ db_password }}"
pg_db = "{{ db_name }}"
pg_port = {{ db_port }}
pg_host = "{{ db_host }}"

PROD_DB = f'postgresql://{pg_user}:{pg_pass}@{pg_host}:{pg_port}/{pg_db}'
Enter fullscreen mode Exit fullscreen mode

Next, create docker-compose.yml.j2 to templates. With this file we will create a container using docker compose:

version: '3.7'
services:
  flask:
     build: flask
     container_name: app
     restart: unless-stopped
     ports:
       - 5000:5000
     environment:
       - DEBUG=0
     networks:
       - flask_network

networks:
  flask_network:
Enter fullscreen mode Exit fullscreen mode

Next, create main.yml in tasks. With this file we will clone flask project, add compose file, replace config.py and create new container using docker compose:

---
- name: Clone html project
  changed_when: false
  ansible.builtin.git:
    repo: https://github.com/danielcristho/Flask_TODO.git
    dest: /home/ubuntu/Flask_TODO
    clone: true

- name: Add Flask Compose
  ansible.builtin.template:
    src: docker-compose.yml.j2
    dest: /home/ubuntu/Flask_TODO/docker-compose.yml
    mode: preserve

- name: Update config.py
  ansible.builtin.template:
    src: config.py.j2
    dest: /home/ubuntu/Flask_TODO/flask/app/config.py
    mode: preserve

- name: Run docker-compose up -d
  shell: docker-compose up -d --build
  args:
    chdir: /home/ubuntu/Flask_TODO
Enter fullscreen mode Exit fullscreen mode

Our project structure should look like this:

├── ansible-flask-psql
│   ├── ansible.cfg
│   ├── hosts
│   ├── playbook.yml
│   └── roles
│       ├── docker
│       │   └── tasks
│       │       └── main.yml
│       ├── flask
│       │   ├── tasks
│       │   │   └── main.yml
│       │   ├── templates
│       │   │   ├── config.py.j2
│       │   │   └── docker-compose.yml.j2
│       │   └── vars
│       │       └── main.yml
│       └── psql
│           ├── tasks
│           │   └── main.yml
│           ├── templates
│           │   └── docker-compose.yml.j2
│           └── vars
│               └── main.yml
├── libvirt-kvm
│   ├── config
│   │   ├── cloud_init.yml
│   │   └── network_config.yml
│   ├── main.tf
│   ├── variables.tf
Enter fullscreen mode Exit fullscreen mode

Run Playbook and testing

Finally, let's run ansible-playbook to deploy PostgreSQL and Flask:

$ ls
ansible.cfg  hosts  playbook.yml  roles

$ ansible-playbook -i host playbook.yml

 _____________________
< PLAY [Deploy Flask] >
 ---------------------
        \   ^__^
         \  (oo)\_______
            (__)\       )\/\
                ||----w |
                ||     ||

 ________________________
< TASK [Gathering Facts] >
 ------------------------
        \   ^__^
         \  (oo)\_______
            (__)\       )\/\
                ||----w |
                ||     |
...
 ____________
< PLAY RECAP >
 ------------
        \   ^__^
         \  (oo)\_______
            (__)\       )\/\
                ||----w |
                ||     ||

192.168.122.15             : ok=13   changed=3    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
192.168.122.19             : ok=15   changed=4    unreachable=0    failed=0    skipped=0    rescued=0    ignored=0
Enter fullscreen mode Exit fullscreen mode

After complete, just make sure there is no error. Then you see there are two containers created. In VM1 is Flask and VM2 is Postgresql:

$ docker ps

CONTAINER ID   IMAGE              COMMAND           CREATED              STATUS              PORTS
                   NAMES
f3978427e34c   flask_todo_flask   "python run.py"   About a minute ago   Up About a minute   0.0.0.0:5000->5000/tcp, :
::5000->5000/tcp   app

$ docker ps

fbebdff75a6e   postgres:13   "docker-entrypoint.s…"   4 minutes ago   Up 4 minutes   0.0.0.0:5433->5432/tcp, [::]:5433
->5432/tcp   db
Enter fullscreen mode Exit fullscreen mode

Try to access the app using browsers, just type http://<vm1_ip>:5000:

Access flask app using browser

Try to add a new task and then the data will be added to the database:

pgsql content

Conclusion

Finally we have created 2 VMs and deploy Flask Project with database.

Thank you for reading this article. Feel free to leave a comment if you have any questions, suggestions, or feedback.

NB: Project Repo: danielcristho/that-i-write/terrafrom-ansible-flask

Top comments (0)
