Build Hadoop 2.X Fully distributed Environment by Ubuntu 16.04

#aws #hadoop #ubuntu

1.Experimental model and architecture description

2.Basic environment configuration

3.JDK Hadoop environment configuration

4.Hadoop configuration file modification

5.Start Hadoop cluster (all in AdServer operation)

1.Experimental model and architecture description

Written in the front, these pictures are from another blog of mine. Don't worry

My Chinese Blog:CSDN Address

This experiment uses three Ubuntu 16 04 instance
HostName IPAddress OS Running Services Role
adserver 192.168.200.10 ubuntu 16.04 NameNode、SecondaryNameNode、ResourceManager、JobHistoryServer Master
monserver 192.168.200.20 ubuntu 16.04 DataNode、NodeManager Slave
osdserver-1 192.168.200.30 ubuntu 16.04 DataNode、NodeManager Slave

2.Basic environment configuration

Change Hostname and the network interface name

Ubuntu 16.04 static IP address only

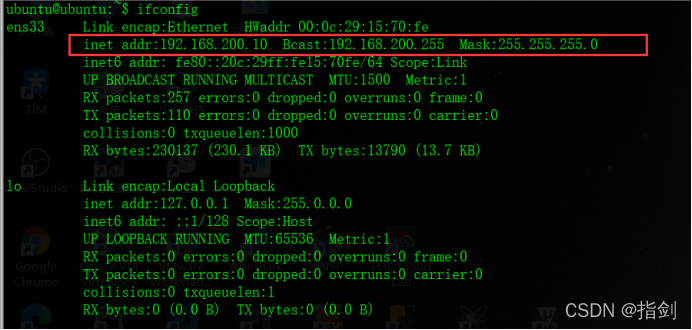

  1. Check the IP address first 在这里插入图片描述

Modify the network card configuration file to make it a static IP address. After modification, restart the instance to take effect
$ sudo vi /etc/network/interfaces在这里插入图片描述

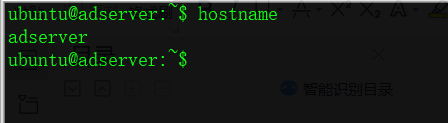

Modify host name, use here

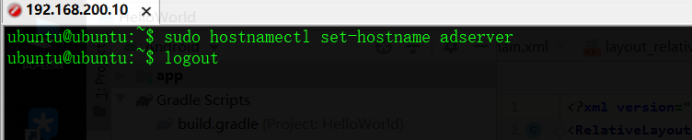

$ sudo hostnamectl set-hostname YOUR_HOSTNAME
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述
在这里插入图片描述

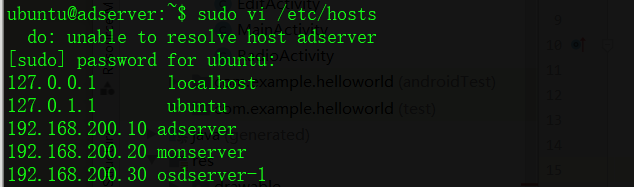

Modify hosts and configure FQDN domain name

在这里插入图片描述

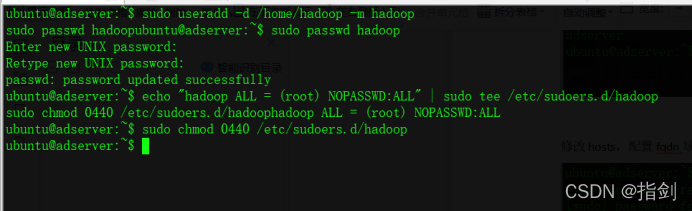

Create Hadoop users and configure password free login. Each node needs to be configured

sudo useradd -d /home/hadoop -m hadoop
sudo passwd hadoop
echo "hadoop ALL = (root) NOPASSWD:ALL" | sudo tee /etc/sudoers.d/hadoop
sudo chmod 0440 /etc/sudoers.d/hadoop
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

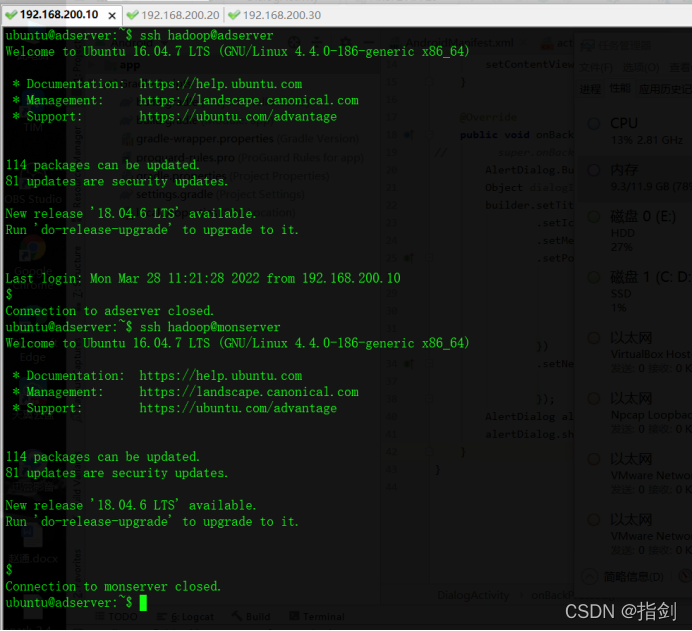

To configure SSH password free login, you need to install openssh-server(sudo apt get install openssh-server) first

ubuntu@adserver:~$ ssh-keygen
ubuntu@adserver:~$ ssh-copy-id adserver
ubuntu@adserver:~$ ssh-copy-id monserver
ubuntu@adserver:~$ ssh-copy-id osdserver-1
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

在这里插入图片描述

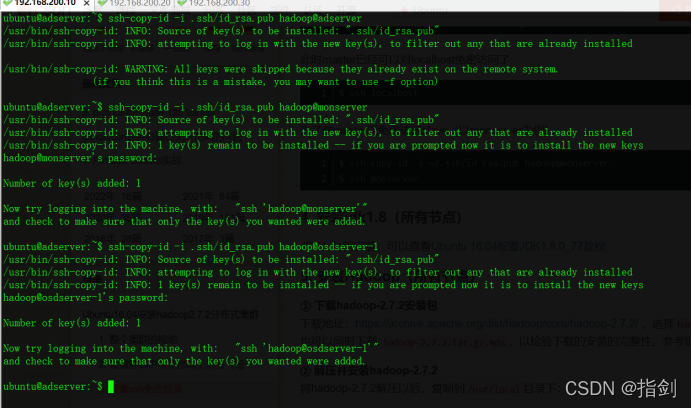

ubuntu@adserver:~$ ssh-copy-id -i .ssh/id_rsa.pub hadoop@adserver
ubuntu@adserver:~$ ssh-copy-id -i .ssh/id_rsa.pub hadoop@monserver
ubuntu@adserver:~$ ssh-copy-id -i .ssh/id_rsa.pub hadoop@osdserver-1
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述
在这里插入图片描述

3.JDK Hadoop environment

1. Configure JDK environment. Jdk-8u77 is used here

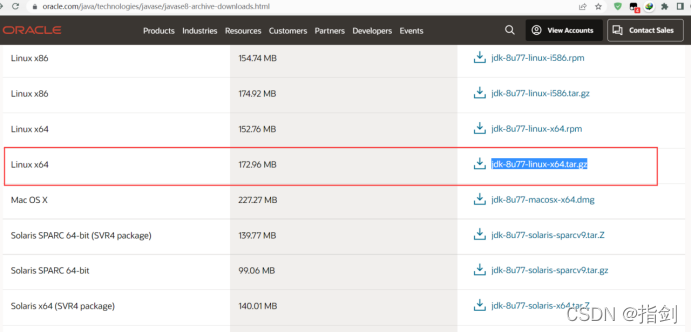

Download JDK jdk-8u77-linux-x64.tar.gz
https://www.oracle.com/java/technologies/javase/javase8-archive-downloads.html
在这里插入图片描述

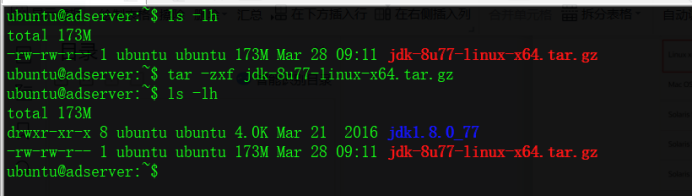

ubuntu@adserver:~$ ls -lh
total 173M
-rw-rw-r-- 1 ubuntu ubuntu 173M Mar 28 09:11 jdk-8u77-linux-x64.tar.gz
ubuntu@adserver:~$ tar -zxf jdk-8u77-linux-x64.tar.gz
ubuntu@adserver:~$ ls -lh
total 173M
drwxr-xr-x 8 ubuntu ubuntu 4.0K Mar 21  2016 jdk1.8.0_77
-rw-rw-r-- 1 ubuntu ubuntu 173M Mar 28 09:11 jdk-8u77-linux-x64.tar.gz
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

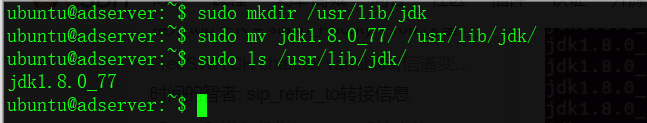

ubuntu@adserver:~$ sudo mkdir /usr/lib/jdk
ubuntu@adserver:~$ sudo mv jdk1.8.0_77/ /usr/lib/jdk/
ubuntu@adserver:~$ sudo ls /usr/lib/jdk/
jdk1.8.0_77
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

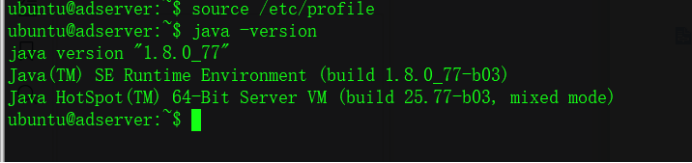

ubuntu@adserver:~$ sudo vi /etc/profile
Add JDK environment
#JDK
export JAVA_HOME=/usr/lib/jdk/jdk1.8.0_77
export JRE_HOME=${JAVA_HOME}/jre
export CLASSPATH=.:${JAVA_HOME}/lib:${JRE_HOME}/lib
export PATH=${JAVA_HOME}/bin:$PATH
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

2. Configure Hadoop environment

Download HadoopHadoop-2.7.2
Download Link：
https://archive.apache.org/dist/hadoop/core/hadoop-2.7.2/hadoop-2.7.2.tar.gz

Unzip：

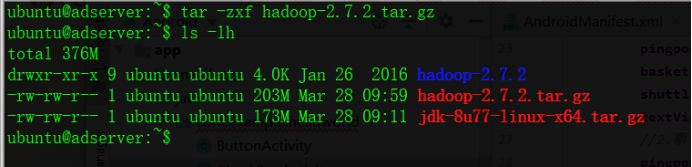

ubuntu@adserver:~$ tar -zxf hadoop-2.7.2.tar.gz
ubuntu@adserver:~$ ls -lh
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

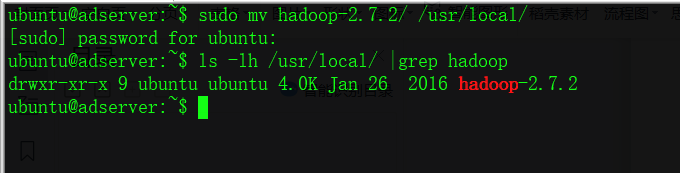

Move Hadoop to /usr/local/ directory在这里插入图片描述

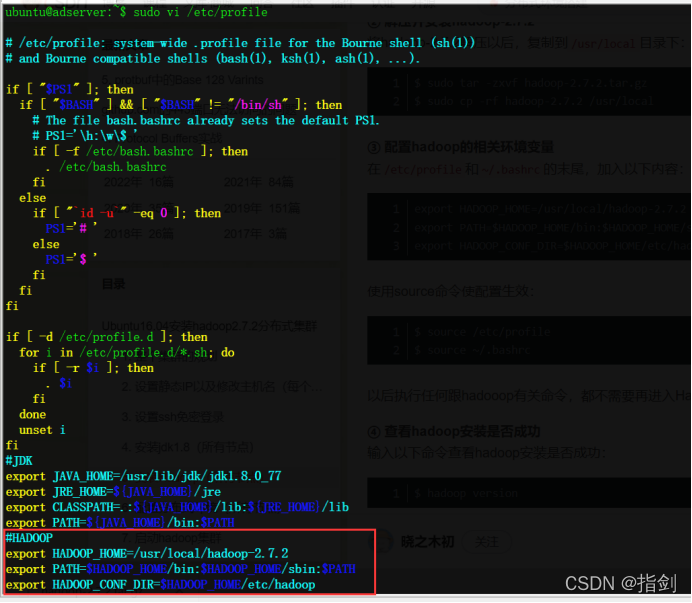

Add Hadoop environment variable

$ sudo vi /etc/profile

#HADOOP
export HADOOP_HOME=/usr/local/hadoop-2.7.2
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

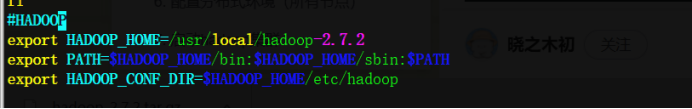

$ vi ~/.bashrc
#HADOOP
export HADOOP_HOME=/usr/local/hadoop-2.7.2
export PATH=$HADOOP_HOME/bin:$HADOOP_HOME/sbin:$PATH
export HADOOP_CONF_DIR=$HADOOP_HOME/etc/hadoop
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

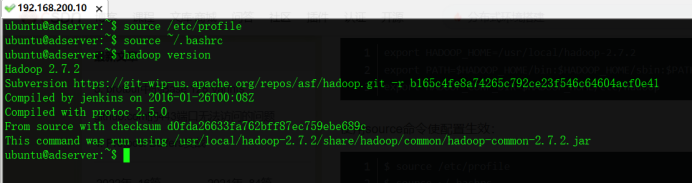

$ source /etc/profile
$ source ~/.bashrc
$ hadoop version
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

4.Hadoop configuration file modification

Modify Hadoop configuration file

Modify the /hadoop-2.7.2/etc/hadoop directory hadoop-env.sh、yarn-env.sh、slaves、core-site.xml、hdfs-site.xml、mapred-site.xml、yarn-site.xml

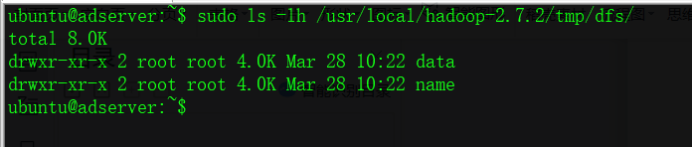

1. Create the tmp folder and its subdirectories under the Hadoop directory

ubuntu@adserver:~$ sudo mkdir -p /usr/local/hadoop-2.7.2/tmp/dfs/data
ubuntu@adserver:~$ sudo mkdir -p /usr/local/hadoop-2.7.2/tmp/dfs/name
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

Modify profile:

First enter the corresponding folder

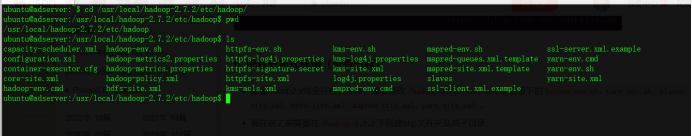

ubuntu@adserver:~$ cd /usr/local/hadoop-2.7.2/etc/hadoop/
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

2. Add Java_ Home to Hadoop environment profile

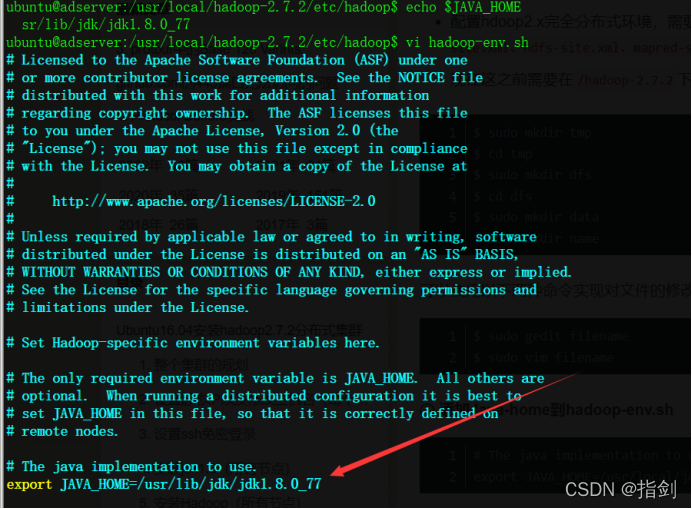

① Add Java home to Hadoop env sh
export JAVA_HOME=/usr/lib/jdk/jdk1.8.0_77
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

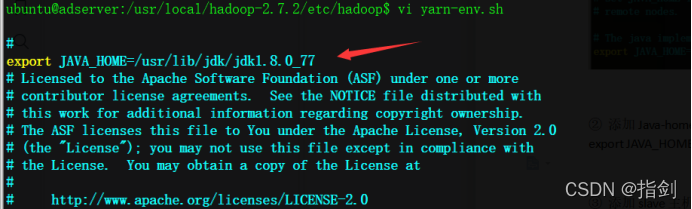

② Add Java home to yarn env SH, just add it directly in the first line
export JAVA_HOME=/usr/lib/jdk/jdk1.8.0_77
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

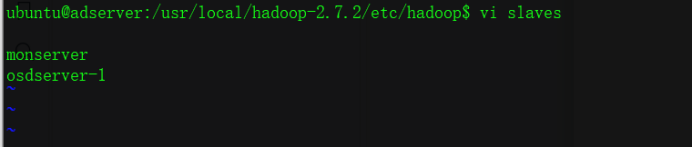

③ Add slave hostname to slave
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ vi slaves
monserver
osdserver-1
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

3. Modify the corresponding configuration file

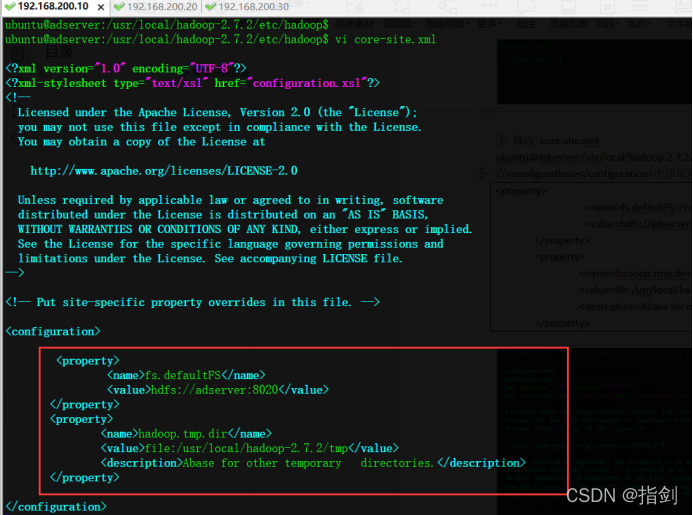

④Modification core-site.xml
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ vi core-site.xml
Enter fullscreen mode Exit fullscreen mode

Add the following contents to <configuration></configuration>

<property>
                <name>fs.defaultFS</name>
                <value>hdfs://adserver:8020</value>
       </property>
       <property>
               <name>hadoop.tmp.dir</name>
               <value>file:/usr/local/hadoop-2.7.2/tmp</value>
               <description>Abase for other temporary   directories.</description>
       </property>
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

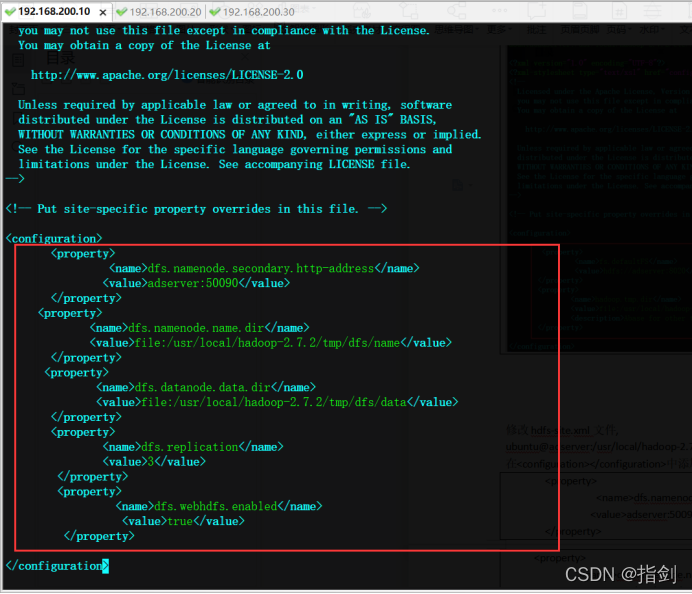

⑤Modify hdfs-site.xml file,
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ vi hdfs-site.xml
Enter fullscreen mode Exit fullscreen mode

Add the following contents to <configuration></configuration>

       <property>
                <name>dfs.namenode.secondary.http-address</name>
               <value>adserver:50090</value>
       </property>
     <property>
             <name>dfs.namenode.name.dir</name>
             <value>file:/usr/local/hadoop-2.7.2/tmp/dfs/name</value>
       </property>
      <property>
              <name>dfs.datanode.data.dir</name>
              <value>file:/usr/local/hadoop-2.7.2/tmp/dfs/data</value>
       </property>
       <property>
               <name>dfs.replication</name>
               <value>3</value>
        </property>
        <property>
                 <name>dfs.webhdfs.enabled</name>
                  <value>true</value>
         </property>
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

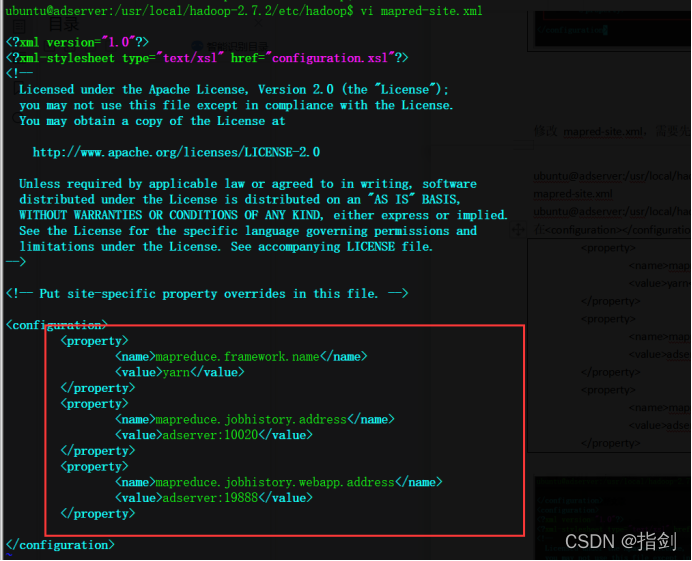

⑥Modify mapred-site,xml, you need to copy the file as mapred-site.xml, and then
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ cp mapred-site.xml.template mapred-site.xml
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ vi mapred-site.xml
Enter fullscreen mode Exit fullscreen mode

Add the following contents to <configuration></configuration>

        <property>
                <name>mapreduce.framework.name</name>
                <value>yarn</value>
        </property>
        <property>
                <name>mapreduce.jobhistory.address</name>
                <value>adserver:10020</value>
        </property>
        <property>
                <name>mapreduce.jobhistory.webapp.address</name>
                <value>adserver:19888</value>
        </property>
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

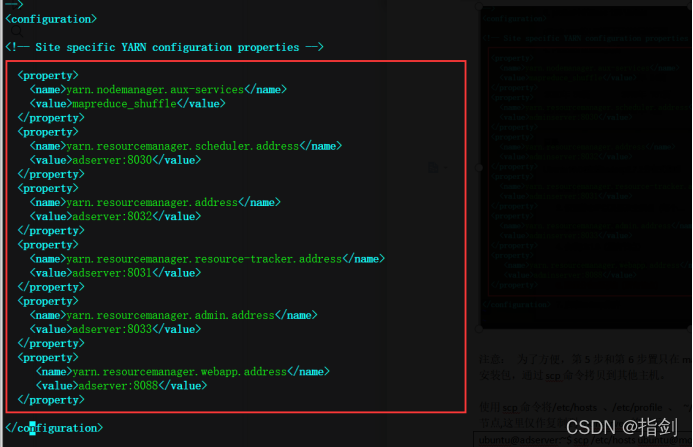

⑦、Modify yarn-site.xml
ubuntu@adserver:/usr/local/hadoop-2.7.2/etc/hadoop$ vi yarn-site.xml
Enter fullscreen mode Exit fullscreen mode

Add the following contents to <configuration></configuration>

  <property>
    <name>yarn.nodemanager.aux-services</name>
    <value>mapreduce_shuffle</value>
  </property>
  <property>
    <name>yarn.resourcemanager.scheduler.address</name>
    <value>adserver:8030</value>
  </property>
  <property>
    <name>yarn.resourcemanager.address</name>
    <value>adserver:8032</value>
  </property>
  <property>
    <name>yarn.resourcemanager.resource-tracker.address</name>
    <value>adserver:8031</value>
  </property>
  <property>
    <name>yarn.resourcemanager.admin.address</name>
    <value>adserver:8033</value>
  </property>
  <property>
     <name>yarn.resourcemanager.webapp.address</name>
     <value>adserver:8088</value>
  </property>
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

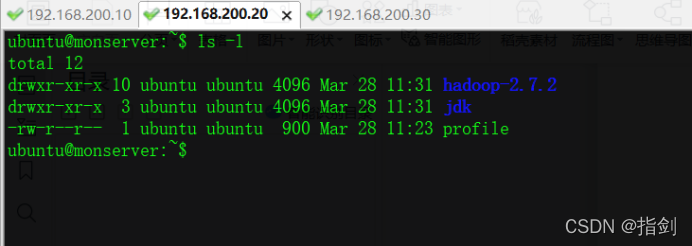

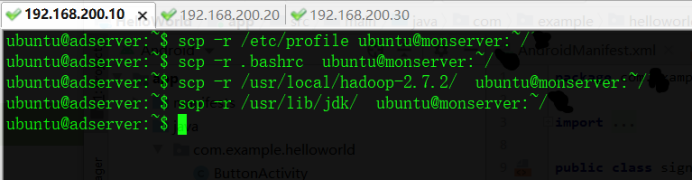

4.Use the SCP command to add /etc/hosts, /etc/profile, ~/.bashrc, JDK and Hadoop are distributed to two slave nodes respectively. Here is only a demonstration of copying to monserver

ubuntu@adserver:~$ scp /etc/hosts ubuntu@monserver:~/
ubuntu@adserver:~$ scp -r /etc/profile ubuntu@monserver:~/
ubuntu@adserver:~$ scp -r .bashrc  ubuntu@monserver:~/
ubuntu@adserver:~$ scp -r /usr/local/hadoop-2.7.2/  ubuntu@monserver:~/
ubuntu@adserver:~$ scp -r /usr/lib/jdk/  ubuntu@monserver:~/
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述
在这里插入图片描述
在这里插入图片描述

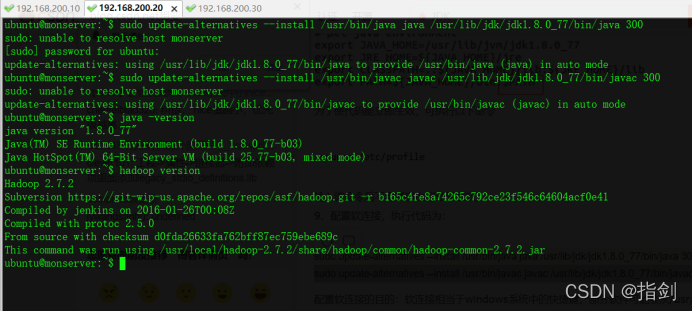

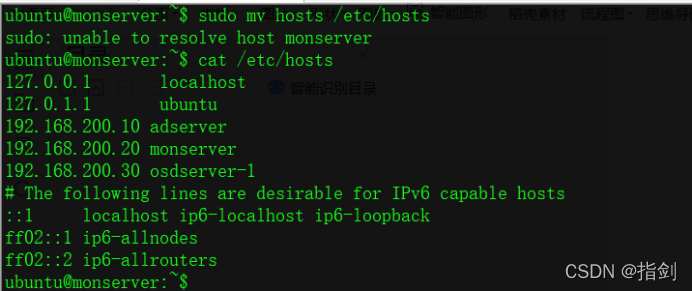

ubuntu@monserver:~$ sudo mv hosts /etc/hosts
ubuntu@monserver:~$ sudo mv hadoop-2.7.2/ /usr/local/
ubuntu@monserver:~$ sudo mv jdk/ /usr/lib/

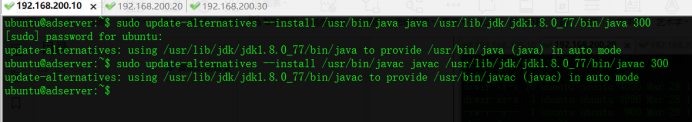

ubuntu@monserver:~$ sudo update-alternatives --install /usr/bin/java java /usr/lib/jdk/jdk1.8.0_77/bin/java 300
ubuntu@monserver:~$ sudo update-alternatives --install /usr/bin/javac javac /usr/lib/jdk/jdk1.8.0_77/bin/javac 300
ubuntu@monserver:~$ source /etc/profile
ubuntu@monserver:~$ source .bashrc
ubuntu@monserver:~$ java -version
ubuntu@monserver:~$ hadoop version
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述
在这里插入图片描述

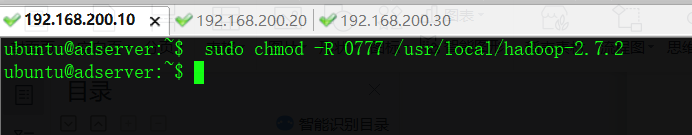

Set the folder permissions of all nodes hadoop-2.7.2 to 0777：

Set the folder permissions of all nodes hadoop-2.7.2 to 0777：

Set the folder permissions of all nodes hadoop-2.7.2 to 0777：

ubuntu@adserver:~$  sudo chmod -R 0777 /usr/local/hadoop-2.7.2
ubuntu@monserver:~$  sudo chmod -R 0777 /usr/local/hadoop-2.7.2
ubuntu@osdserver-1:~$  sudo chmod -R 0777 /usr/local/hadoop-2.7.2
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

5.Start Hadoop cluster (all in AdServer operation)

① initialization namenode

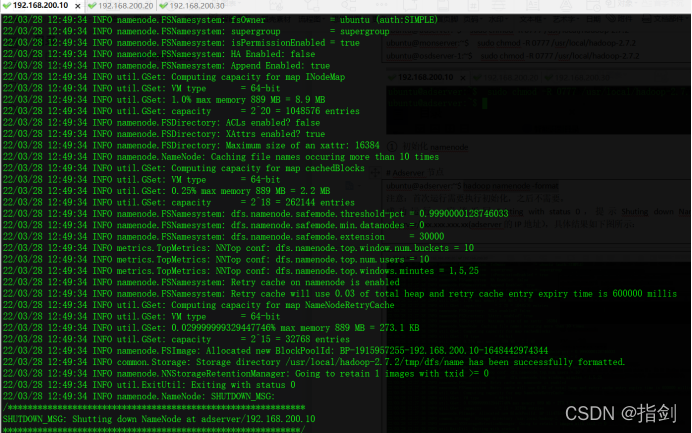

ubuntu@adserver:~$ hadoop namenode -format
Note: initialization is required for the first run, but not after.
If it runs successfully, it should return exiting with status 0 and prompt shutting down namenode at AdServer/xxx.xxx.xxx.XX (IP address of AdServer). The specific results are shown in the figure below：
在这里插入图片描述

②Start Hadoop daemons (namenode, datanode, ResourceManager, nodemanager, etc.)）

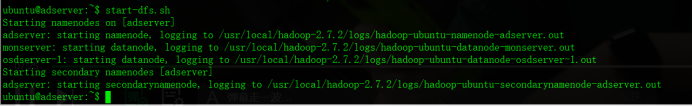

A、Start namenode, secondarynamenode and datanode first

Execute on the AdServer node
ubuntu@adserver:~$start-dfs.sh
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

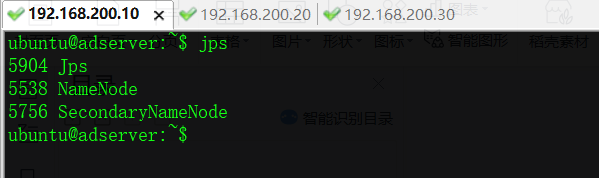

At this time, the processes running on the master node are：NameNode、SecondaryNameNode

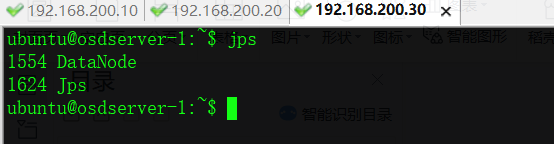

At this time, the processes running on the slave node are：DataNode

在这里插入图片描述
在这里插入图片描述

B、Start ResourceManager、NodeManager

$ start-yarn.sh
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

Yarn is separated from MapReduce and is responsible for resource management and task scheduling. Yarn runs on MapReduce and provides high availability and scalability
At this time, the processes running on the master node are：NameNode、SecondaryNameNode、ResourceManager
The processes running on the slave node are：DataNode、NodeManager

C、Start JobHistoryServer

$ mr-jobhistory-daemon.sh start historyserver
Enter fullscreen mode Exit fullscreen mode
Note: a jobhistoryserver process will be added to the master node

After TMP and logP directories on each node are created several times, be sure to delete them again

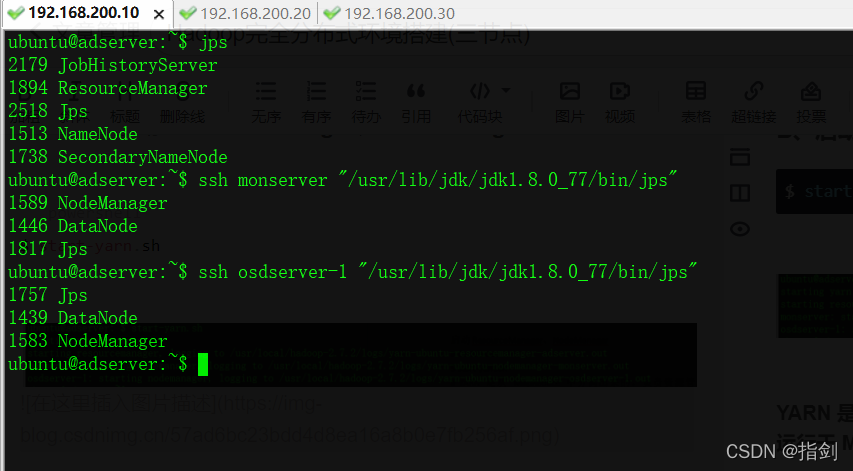

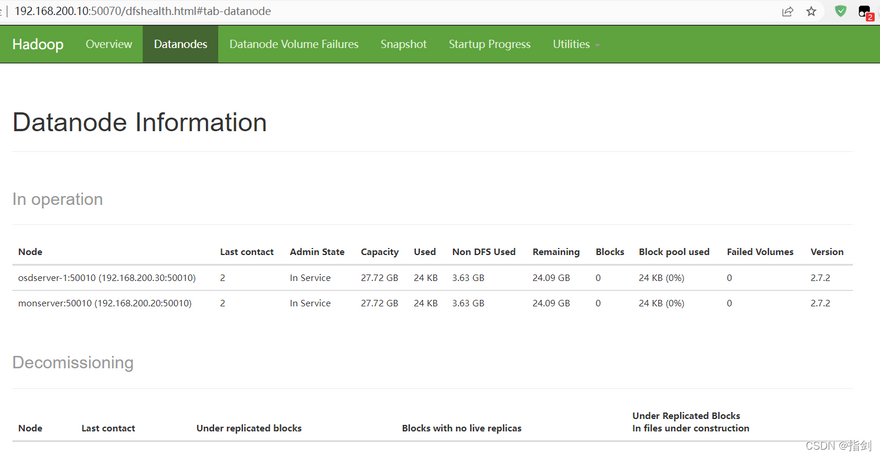

View the operation status of three nodes

ubuntu@adserver:~$ jps
ubuntu@adserver:~$ ssh monserver "/usr/lib/jdk/jdk1.8.0_77/bin/jps"
ubuntu@adserver:~$ ssh osdserver-1 "/usr/lib/jdk/jdk1.8.0_77/bin/jps"
Enter fullscreen mode Exit fullscreen mode

在这里插入图片描述

在这里插入图片描述

If this article is helpful to you, please like it and Follow Me. Thank you,Have a Nice Day!!!!!

Top comments (0)

Read next

eyalestrin profile image

Announcements from Matt Garman Keynote at re:Invent 2024

Eyal Estrin -

canopas_user profile image

How To Create Easy Pagination In Jetpack Compose

Nandani Sharma -

splitpointsolutions profile image

What Are the Benefits of APM and User Experience Management?

Splitpoint Solutions -

ehsan_ali_ea4e347abd3002d profile image

Essential Factors to Evaluate Before Choosing White Label GPS Tracking Software

Ehsan Ali -
