AWS: Grafana Loki, InterZone traffic in AWS, and Kubernetes nodeAffinity

#aws #monitoring #devops #todayilearned

Traffic in AWS is generally quite an interesting and sometimes complicated thing, I once wrote about it in the AWS: Cost optimization — services expenses overview and traffic costs in AWS. Now, it’s time to return to this topic again.

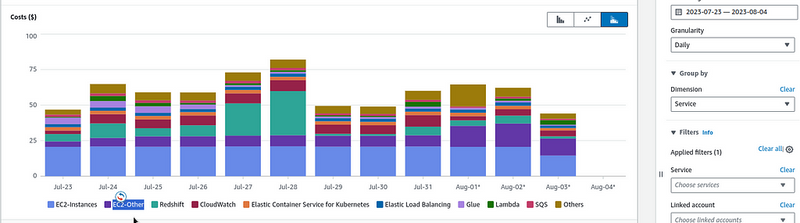

So, what’s the problem: in AWS Cost Explorer, I’ve noticed that we have an increase in EC2-Other costs for several days in a row:

And what is included in our EC2-Other? All Load Balancers, IP, EBS, and traffic, see Tips and Tricks for Exploring your Data in AWS Cost Explorer.

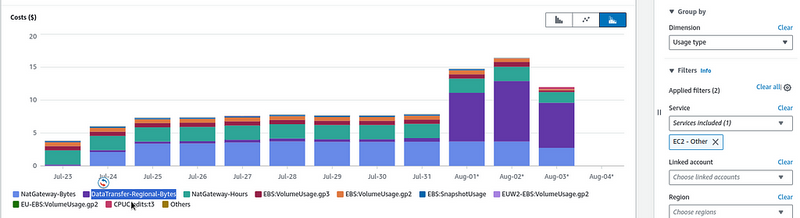

To check what exactly the expenses have increased — switch Dimension to the Usage Type and select EC2-Other in the Service:

Here, we can see that the expenses have grown on the DataTransfer-Regional-Bytes , that is “This is Amazon EC2 traffic that moves between AZs but stays within the same region”, as said in the Understand AWS Data transfer details in depth from cost and usage report using Athena query and QuickSight, and Understanding data transfer charges.

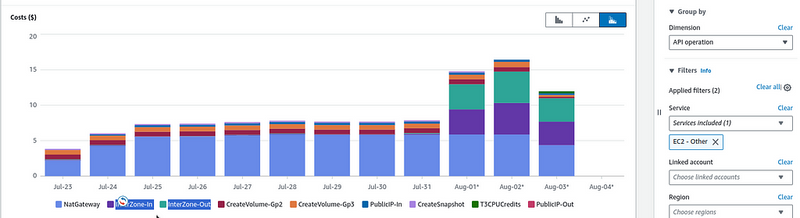

We can switch to the API Operation, and check exactly what kind of traffic was used:

InterZone-In and InterZone-Out.

In the past week, I started monitoring with VictoriaMetrics: deploying a Kubernetes monitoring stack , configured logs collection from CloudWatch Logs using promtail-lambda, and added alerts with Loki Ruler — apparently it affected the traffic. Let’s figure it out.

VPC Flow Logs

What we need is to add Flow Logs for the VPC of our Kubernetes cluster. Then we will see which Kubernetes Pods or Lambda functions in AWS began to actively “eat” traffic. For more details, see the AWS: VPC Flow Logs — an overview and example with CloudWatch Logs Insights post.

So, we can create a CloudWatch Log Group with custom fields to have pkt_srcaddr and pkt_dstaddr fields, which contain IPs of Kubernetes Pods, see Using VPC Flow Logs to capture and query EKS network communications.

In the Log Group, configure the following fields:

region vpc-id az-id subnet-id instance-id interface-id flow-direction srcaddr dstaddr srcport dstport pkt-srcaddr pkt-dstaddr pkt-src-aws-service pkt-dst-aws-service traffic-path packets bytes action
Enter fullscreen mode Exit fullscreen mode

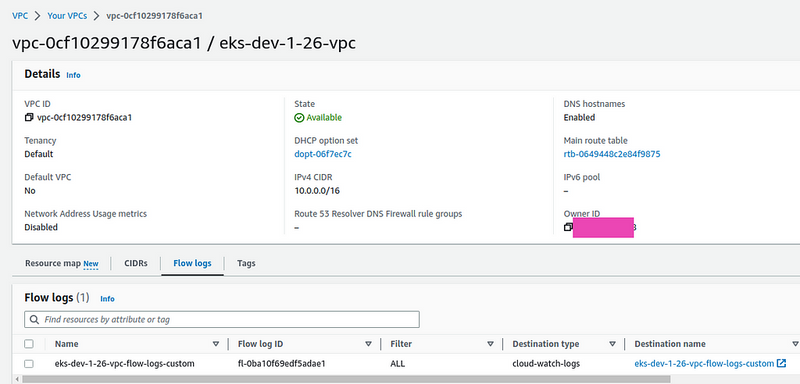

Next, configure Flow Logs for the VPC of our cluster:

And let’s go check the logs.

CloudWatch Logs Insights

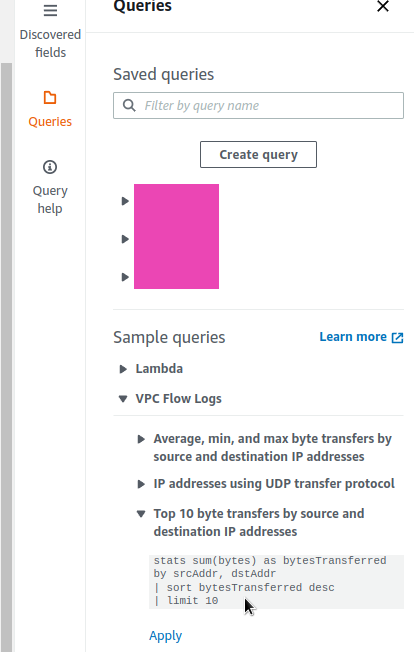

Let’s take a request from examples:

And rewrite it according to our format:

parse @message "* * * * * * * * * * * * * * * * * * *"
| as region, vpc_id, az_id, subnet_id, instance_id, interface_id,
| flow_direction, srcaddr, dstaddr, srcport, dstport,
| pkt_srcaddr, pkt_dstaddr, pkt_src_aws_service, pkt_dst_aws_service,
| traffic_path, packets, bytes, action
| stats sum(bytes) as bytesTransferred by pkt_srcaddr, pkt_dstaddr
| sort bytesTransferred desc
| limit 10
Enter fullscreen mode Exit fullscreen mode

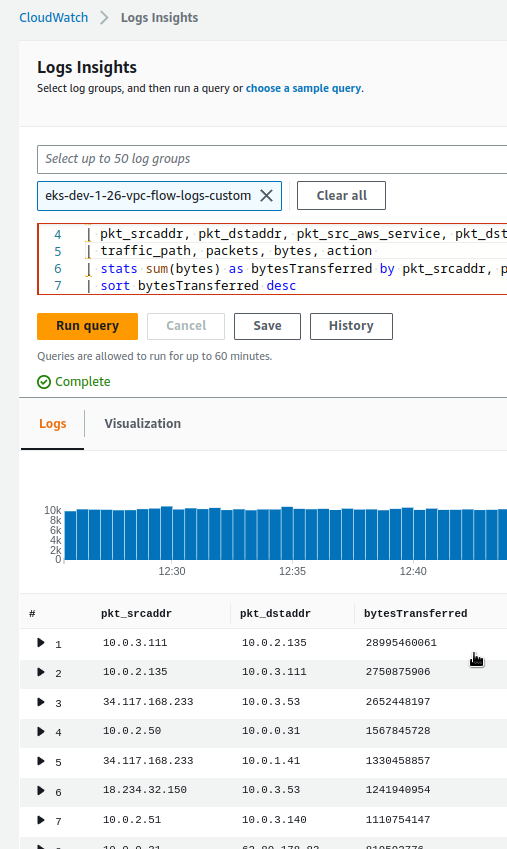

With that, we are getting an interesting picture:

Where in the top with a large margin we see two addresses — 10.0.3.111 and 10.0.2.135, which caught up to 28995460061 bytes of traffic.

Loki components and traffic

Check what kind of Pods these are in our Kubernetes, and find their corresponding WorkerNodes/EC2.

First 10.0.3.111:

$ kk -n dev-monitoring-ns get pod -o wide | grep 10.0.3.111
loki-backend-0 1/1 Running 0 22h 10.0.3.111 ip-10–0–3–53.ec2.internal <none> <none>
Enter fullscreen mode Exit fullscreen mode

And 10.0.2.135:

$ kk -n dev-monitoring-ns get pod -o wide | grep 10.0.2.135
loki-read-748fdb976d-grflm 1/1 Running 0 22h 10.0.2.135 ip-10–0–2–173.ec2.internal <none> <none>
Enter fullscreen mode Exit fullscreen mode

And here I recalled, that on July 31 I turned on alerts in Loki, which are processed in Loki’s backend Pod, where the Ruler component is running (earlier, it leaving in the read Pods).

That is, the biggest part of the traffic occurs precisely between the Read and Backend pods.

It is a good question what is transmitted there in such a quantity, but for now, we need to solve the problem of traffic costs.

Let’s check in which AvailabilityZones the Kubernetes WorkerNodes are located.

The ip-10–0–3–53.ec2.internal instance, where the Backend pod is running:

$ kk get node ip-10–0–3–53.ec2.internal -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1b
Enter fullscreen mode Exit fullscreen mode

And ip-10–0–2–173.ec2.internal, where the Read Pod is located:

$ kk get node ip-10–0–2–173.ec2.internal -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1a
Enter fullscreen mode Exit fullscreen mode

us-east-1b and us-east-1a  — here we have our cross-AvailabilityZones traffic from the Cost Explorer.

Kubernetes podAffinity and nodeAffinity

What we can try is to add Affinity for the pods to run in the same AvailabilityZone. See Assigning Pods to Nodes and Kubernetes Multi-AZ deployments Using Pod Anti-Affinity.

For Pods in the Helm chart, we already have affinity:

...
  affinity: |
    podAntiAffinity:
      requiredDuringSchedulingIgnoredDuringExecution:
        - labelSelector:
            matchLabels:
              {{- include "loki.readSelectorLabels" . | nindent 10 }}
          topologyKey: kubernetes.io/hostname
...
Enter fullscreen mode Exit fullscreen mode

The first option is to tell the Kubernetes Scheduler that we want the Read Pods to be located on the same WorkerNode where the Backend Pods are. For this, we can use the podAffinity.

$ kk -n dev-monitoring-ns get pod loki-backend-0 --show-labels
NAME READY STATUS RESTARTS AGE LABELS
loki-backend-0 1/1 Running 0 23h app.kubernetes.io/component=backend,app.kubernetes.io/instance=atlas-victoriametrics,app.kubernetes.io/name=loki,app.kubernetes.io/part-of=memberlist,controller-revision-hash=loki-backend-8554f5f9f4,statefulset.kubernetes.io/pod-name=loki-backend-0
Enter fullscreen mode Exit fullscreen mode

So for the Reader, we can specify podAntiAffinity with labelSelector=app.kubernetes.io/component=backend - then the Reader will "reach" for the same AvailabilityZone where the Backend is running.

Another option is to specify a label with the desired AvailabilityZone through nodeAffinity, and in Expressions for both Read and Backend.

Let’s try with preferredDuringSchedulingIgnoredDuringExecution, i.e. the "soft limit":

...
  read:
    replicas: 2
    affinity: |
      nodeAffinity:
        preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 1
          preference:
            matchExpressions:
            - key: topology.kubernetes.io/zone
              operator: In
              values:
              - us-east-1a
  ...
  backend:
    replicas: 1
    affinity: |
      nodeAffinity:
        preferredDuringSchedulingIgnoredDuringExecution:
        - weight: 1
          preference:
            matchExpressions:
            - key: topology.kubernetes.io/zone
              operator: In
              values:
              - us-east-1a
...
Enter fullscreen mode Exit fullscreen mode

Deploy, check Read Pods:

$ kk -n dev-monitoring-ns get pod -l app.kubernetes.io/component=read -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
loki-read-d699d885c-cztj7 1/1 Running 0 50s 10.0.2.181 ip-10–0–2–220.ec2.internal <none> <none>
loki-read-d699d885c-h9hpq 0/1 Running 0 20s 10.0.2.212 ip-10–0–2–173.ec2.internal <none> <none>
Enter fullscreen mode Exit fullscreen mode

And instances zone:

$ kk get node ip-10–0–2–220.ec2.internal -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1a

$kk get node ip-10–0–2–173.ec2.internal -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1a
Enter fullscreen mode Exit fullscreen mode

Okay, everything is good here, but what about the Backend?

$ kk get nod-n dev-monitoring-ns get pod -l app.kubernetes.io/component=backend -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
loki-backend-0 1/1 Running 0 75s 10.0.3.254 ip-10–0–3–53.ec2.internal <none> <none>
Enter fullscreen mode Exit fullscreen mode

And its Node:

$ kk -n dev-get node ip-10–0–3–53.ec2.internal -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1b
Enter fullscreen mode Exit fullscreen mode

But why in the 1b , when we set 1a? Let’s check its StatefulSet if our affinity has been added:

$ kk -n dev-monitoring-ns get sts loki-backend -o yaml
apiVersion: apps/v1
kind: StatefulSet
…
spec:
affinity:
nodeAffinity:
preferredDuringSchedulingIgnoredDuringExecution:
- preference:
matchExpressions:
- key: topology.kubernetes.io/zone
operator: In
values:
- us-east-1a
weight: 1
…
Enter fullscreen mode Exit fullscreen mode

Everything is there.

OK — let’s use the “hard limit”, that is the requiredDuringSchedulingIgnoredDuringExecution:

...
  backend:
    replicas: 1
    affinity: |
      nodeAffinity:
        requiredDuringSchedulingIgnoredDuringExecution:
          nodeSelectorTerms:
          - matchExpressions:
            - key: topology.kubernetes.io/zone
              operator: In
              values:
              - us-east-1a
...
Enter fullscreen mode Exit fullscreen mode

Deploy again, and now the Pod with the Backend is stuck in Pending status:

$ kk -n dev-monitoring-ns get pod -l app.kubernetes.io/component=backend -o wide
NAME READY STATUS RESTARTS AGE IP NODE NOMINATED NODE READINESS GATES
loki-backend-0 0/1 Pending 0 3m39s <none> <none> <none> <none>
Enter fullscreen mode Exit fullscreen mode

Why? Let’s check its Events:

$ kk -n dev-monitoring-ns describe pod loki-backend-0
…
Events:
Type Reason Age From Message
 — — — — — — — — — — — — -
Warning FailedScheduling 34s default-scheduler 0/3 nodes are available: 1 node(s) didn’t match Pod’s node affinity/selector, 2 node(s) had volume node affinity conflict. preemption: 0/3 nodes are available: 3 Preemption is not helpful for scheduling..
Enter fullscreen mode Exit fullscreen mode

At first, I thought that there is already a maximum of Pods on WorkerNode — 17 on the t3.medium AWS EC2 instances.

Let’s check:

$ kubectl -n dev-monitoring-ns get pods -A -o jsonpath='{range .items[?(@.spec.nodeName)]}{.spec.nodeName}{"\n"}{end}' | sort | uniq -c | sort -rn
16 ip-10–0–2–220.ec2.internal
14 ip-10–0–2–173.ec2.internal
13 ip-10–0–3–53.ec2.internal
Enter fullscreen mode Exit fullscreen mode

But no, there are still places.

So what? Maybe EBS? A common problem is when EBS is in one AvailabilityZone, and a Pod is running in another.

Find the Volume of the Backend — it is connected for alert rulers for the Ruler:

…
Volumes:
…
data:
Type: PersistentVolumeClaim (a reference to a PersistentVolumeClaim in the same namespace)
ClaimName: data-loki-backend-0
ReadOnly: false
…
Enter fullscreen mode Exit fullscreen mode

Find the corresponding Persistent Volume:

$ kubectl k -n dev-monitoring-ns get pvc data-loki-backend-0
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
data-loki-backend-0 Bound pvc-b62bee0b-995e-486b-9f97-f2508f07a591 10Gi RWO gp2 15d
Enter fullscreen mode Exit fullscreen mode

And the AvailabilityZone of this EBS:

$ kk -n dev-monitoring-ns get pv pvc-b62bee0b-995e-486b-9f97-f2508f07a591 -o json | jq -r '.metadata.labels["topology.kubernetes.io/zone"]'
us-east-1b
Enter fullscreen mode Exit fullscreen mode

And indeed, we have a disk in the us-east-1b zone, while we are trying to launch the Pod in the us-east-1a.

What we can do here, is either run Readers in zone 1b, or delete the PVC for the Backend, and then during deployment it will create a new PV and EBS in zone 1a.

Since there is no data in the volume and rules for Ruler are created from a ConfigMap, it is easier to just delete the PVC:

$ kubectl k -n dev-monitoring-ns delete pvc data-loki-backend-0
persistentvolumeclaim “data-loki-backend-0” deleted
Enter fullscreen mode Exit fullscreen mode

Delete the pod so that it is recreated:

$ kk -n dev-monitoring-ns delete pod loki-backend-0
pod “loki-backend-0” deleted
Enter fullscreen mode Exit fullscreen mode

Check that the PVC is created:

$ kk -n dev-monitoring-ns get pvc data-loki-backend-0
NAME STATUS VOLUME CAPACITY ACCESS MODES STORAGECLASS AGE
data-loki-backend-0 Bound pvc-5b690c18-ba63–44fd-9626–8221e1750c98 10Gi RWO gp2 14s
Enter fullscreen mode Exit fullscreen mode

And its location now:

$ kk -n dev-monitoring-ns get pv pvc-5b690c18-ba63–44fd-9626–8221e1750c98 -o json | jq -r ‘.metadata.labels[“topology.kubernetes.io/zone”]’
us-east-1a
Enter fullscreen mode Exit fullscreen mode

And the Pod also started:

$ kk -n dev-monitoring-ns get pod loki-backend-0
NAME READY STATUS RESTARTS AGE
loki-backend-0 1/1 Running 0 2m11s
Enter fullscreen mode Exit fullscreen mode

Traffic optimization results

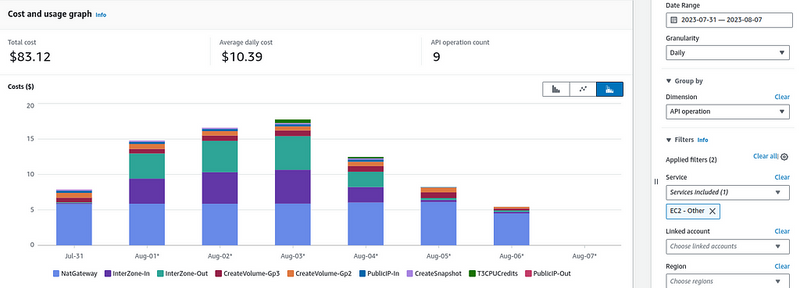

I did it on Friday, and for Monday we have the following result:

Everything turned out as planned: the Cross AvailabilityZone traffic is now almost zero.
