Terraform: Nginx in GCE

Introduction

hi, i am Akshay Rao
This blog is about the installation of nginx in GCP VM through terraform.

Pre-requisite

GCP account (can get 300$ free trial account)
Terraform installed
VS-code

Let's start

  • create a project in the gcp console.

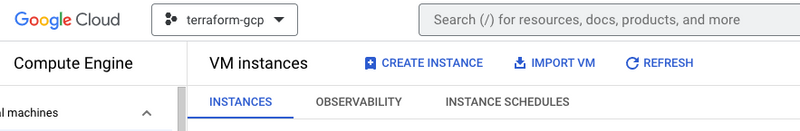

  • click on the tab beside google cloud logo and click new project, give name i have given it a terraform-gcp.

Image 1

  • create a service account by searching service account in the search bar, click create service account-> give name -> add the editor role under basic.

  • create a keys for the service account and download the json file.

  • make a directory in which the terraform scripts will be stored and move the above downloaded json to this directory.

mv ~/Downloads/<file name> credentials.json
Enter fullscreen mode Exit fullscreen mode

create a file named main.tf

  1. Provider block
provider "google" {
  project = "<your project-id>"
  credentials = "${file("credentials.json")}"
  region = "us-west1"
  zone = "us-west1-a"
}
Enter fullscreen mode Exit fullscreen mode

now execute terraform init
this is done so that the terraform can connect to gcp.

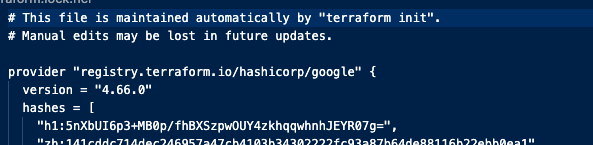

.terraform.lock.hcl
.terraform

will be created automatically
provider will be registered.
Image 2

  1. Resources block create a network , one subnetwork and VM instance in which the nginx will be running.
resource "google_compute_network" "vpc_network" {
  name                    = "my-custom-network"
  auto_create_subnetworks = false
  mtu                     = 1460
}

resource "google_compute_subnetwork" "default" {
  name          = "us-west-a"
  ip_cidr_range = "10.0.1.0/24"
  region        = "us-west1"
  network       = google_compute_network.vpc_network.id
}

resource "google_compute_instance" "nginx-instance" {
    name = "nginx-intsance"
    machine_type = "f1-micro"
    tags = ["ssh"]
    zone = "us-west1-a"
    allow_stopping_for_update = true

    boot_disk {
      initialize_params {
        image = "debian-cloud/debian-11"
      }
    }
    metadata_startup_script =  "sudo apt-get update; sudo apt-get install -y nginx; sudo systemctl start nginx"      // renderning script from template file
    network_interface {
      subnetwork = "google_compute_subnetwork.default.id"
      subnetwork_project = "<your project id>"
      access_config {
         // is included so that the vm gets external ip address
      }
    }
}
Enter fullscreen mode Exit fullscreen mode
  • mtu - maximum trasmiaaion unit.
  • added boot as the debian 11 image.
  • in the metadata_startup_script i have passed the installation commands for the nginx.

Deployment and Verify

save it
now run command terraform plan and yes
terraform will know the what resources to create with plan command and it will create orderly when applied.

[akshay.rao terraform-gcp]$ terraform plan
data.template_file.nginx_installation: Reading...
data.template_file.nginx_installation: Read complete after 0s [id=cfbeb1ad70856f85403aaec9edaed46cdcd3ab215367abd5b1049f5a69a24fc1]

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # google_compute_instance.nginx-instance will be created
  + resource "google_compute_instance" "nginx-instance" {
      + allow_stopping_for_update = true
      + can_ip_forward            = false
      + cpu_platform              = (known after apply)
      + current_status            = (known after apply)
      + deletion_protection       = false
      + guest_accelerator         = (known after apply)
      + id                        = (known after apply)
      + instance_id               = (known after apply)
      + label_fingerprint         = (known after apply)
      + machine_type              = "f1-micro"
      + metadata_fingerprint      = (known after apply)
      + metadata_startup_script   = <<-EOT
            #!/bin/bash/
            set -e
            echo "** installing nginx **"
            sudo apt-get update
            sudo apt-get install -y nginx
            sudo systemctl enable nginx
            sudo systemctl restart nginx

            echo "**   Installation Complteted!!   **"

            echo "Welcome to Nginx which is deployed using Terraform!!!" > /var/www/html

            echo "**   Startup script completes!!   **"
        EOT
      + min_cpu_platform          = (known after apply)
      + name                      = "nginx-intsance"
      + project                   = (known after apply)
      + self_link                 = (known after apply)
      + tags                      = [
          + "proxy",
        ]
      + tags_fingerprint          = (known after apply)
      + zone                      = "us-west1-a"

      + boot_disk {
          + auto_delete                = true
          + device_name                = (known after apply)
          + disk_encryption_key_sha256 = (known after apply)
          + kms_key_self_link          = (known after apply)
          + mode                       = "READ_WRITE"
          + source                     = (known after apply)

          + initialize_params {
              + image  = "debian-cloud/debian-11"
              + labels = (known after apply)
              + size   = (known after apply)
              + type   = (known after apply)
            }
        }

      + network_interface {
          + ipv6_access_type   = (known after apply)
          + name               = (known after apply)
          + network            = "default"
          + network_ip         = (known after apply)
          + stack_type         = (known after apply)
          + subnetwork         = (known after apply)
          + subnetwork_project = (known after apply)

          + access_config {
              + nat_ip       = (known after apply)
              + network_tier = (known after apply)
            }
        }
    }

Plan: 1 to add, 0 to change, 0 to destroy.
Enter fullscreen mode Exit fullscreen mode

now terraform apply and yes

[akshay.rao terraform-gcp ]$ terraform apply
data.template_file.nginx_installation: Reading...
data.template_file.nginx_installation: Read complete after 0s [id=cfbeb1ad70856f85403aaec9edaed46cdcd3ab215367abd5b1049f5a69a24fc1]

Terraform used the selected providers to generate the following execution plan. Resource actions are indicated with the following symbols:
  + create

Terraform will perform the following actions:

  # google_compute_instance.nginx-instance will be created
  + resource "google_compute_instance" "nginx-instance" {
      + allow_stopping_for_update = true
      + can_ip_forward            = false
      + cpu_platform              = (known after apply)
      + current_status            = (known after apply)
      + deletion_protection       = false
      + guest_accelerator         = (known after apply)
      + id                        = (known after apply)
      + instance_id               = (known after apply)
      + label_fingerprint         = (known after apply)
      + machine_type              = "f1-micro"
      + metadata_fingerprint      = (known after apply)
      + metadata_startup_script   = <<-EOT
            #!/bin/bash/
            set -e
            echo "** installing nginx **"
            sudo apt-get update
            sudo apt-get install -y nginx
            sudo systemctl enable nginx
            sudo systemctl restart nginx

            echo "**   Installation Complteted!!   **"

            echo "Welcome to Nginx which is deployed using Terraform!!!" > /var/www/html

            echo "**   Startup script completes!!   **"
        EOT
      + min_cpu_platform          = (known after apply)
      + name                      = "nginx-intsance"
      + project                   = (known after apply)
      + self_link                 = (known after apply)
      + tags                      = [
          + "proxy",
        ]
      + tags_fingerprint          = (known after apply)
      + zone                      = "us-west1-a"

      + boot_disk {
          + auto_delete                = true
          + device_name                = (known after apply)
          + disk_encryption_key_sha256 = (known after apply)
          + kms_key_self_link          = (known after apply)
          + mode                       = "READ_WRITE"
          + source                     = (known after apply)

          + initialize_params {
              + image  = "debian-cloud/debian-11"
              + labels = (known after apply)
              + size   = (known after apply)
              + type   = (known after apply)
            }
        }

      + network_interface {
          + ipv6_access_type   = (known after apply)
          + name               = (known after apply)
          + network            = "default"
          + network_ip         = (known after apply)
          + stack_type         = (known after apply)
          + subnetwork         = (known after apply)
          + subnetwork_project = (known after apply)

          + access_config {
              + nat_ip       = (known after apply)
              + network_tier = (known after apply)
            }
        }
    }

Plan: 1 to add, 0 to change, 0 to destroy.

Do you want to perform these actions?
  Terraform will perform the actions described above.
  Only 'yes' will be accepted to approve.

  Enter a value: yes

google_compute_instance.nginx-instance: Creating...
google_compute_instance.nginx-instance: Still creating... [10s elapsed]
google_compute_instance.nginx-instance: Still creating... [20s elapsed]
google_compute_instance.nginx-instance: Creation complete after 22s [id=projects/terraform-gcp-388209/zones/us-west1-a/instances/nginx-intsance]

Apply complete! Resources: 1 added, 0 changed, 0 destroyed.
Enter fullscreen mode Exit fullscreen mode

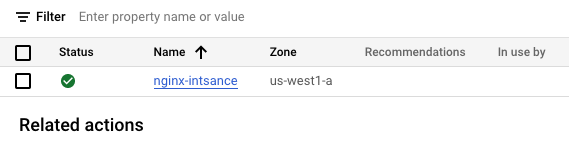

now go to console and search for vm instances you will be able to see the vm running

Image 3

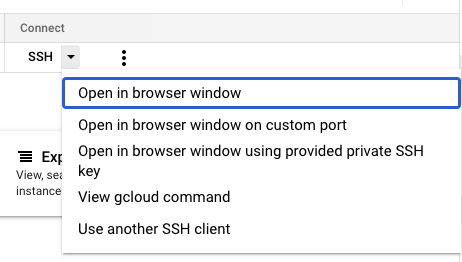

click on ssh with open with browser window

Image 4
the terminal will open

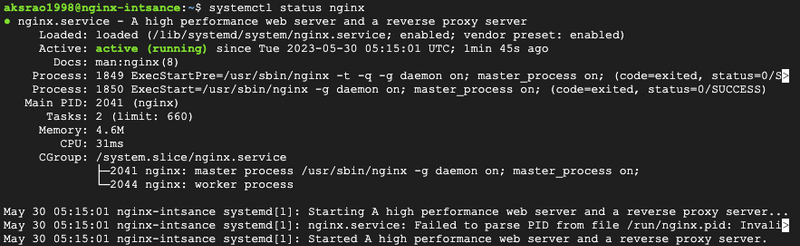

run command systemctl status nginx
you will get:-
Image 5
we have insatlled nginx through terraform.
Thank you
