Introduction to Kubernetes with Amazon EKS

Crossposted from dev.to: https://dev.to/donaldsebleung/introduction-to-kubernetes-with-amazon-eks-1nj6

You can access key assets in this article on GitHub.

In this article, we will introduce basic concepts around Kubernetes, followed by a hands-on session where we spin up a Kubernetes cluster on Amazon EKS and deploy a simple website to the cluster.

Prerequisites

It is assumed that you:

  • Are comfortable with the Linux command line
  • Are familiar with the concept of containers; practical experience with Docker would be beneficial
  • Have an AWS account
  • Possess basic experience in configuring and using the AWS CLI
  • Are aware that following this hands-on session may incur monetary costs and you are solely responsible for any such costs

With the prerequisites addressed, let's get started!

Background

Modern applications are often comprised of microservices communicating with each other through the network, instead of as a single, monolithic entity. Each microservice typically runs in its own container, which calls for an efficient and standardized approach for scheduling and managing these containers. Kubernetes is the industry-standard solution that addresses these needs.

Kubernetes

History

Reference: Kubernetes - Wikipedia

Kubernetes is a container orchestration tool originally developed by Google, which was released under the open source Apache 2.0 license in 2015 and donated to the Cloud Native Computing Foundation (CNCF), a non-profit organization jointly founded by Google and The Linux Foundation at the same time for this purpose. Kubernetes allows for one or more physical or virtual machines, otherwise known as nodes, to form a cluster, on which containerized workloads can be scheduled, deployed and managed with relative ease, providing benefits such as scalability, reliability and high availability.

Architecture

Reference: Kubernetes

A Kubernetes cluster consists of one or more nodes, which are further subdivided into control and worker nodes. Control nodes reside in the control plane and are responsible for scheduling and managing where containerized workloads should be run, while worker nodes reside in the data plane and are responsible for actually running the containerized workloads, as well as reporting the status of these workloads (and the status of the nodes themselves) to the control plane.

Kubernetes primarily relies on a declarative configuration model where the Kubernetes administrator specifies one or more YAML files to be applied to the cluster. Each YAML file describes one or more objects, logical entities that represent part of a desired state. The Kubernetes cluster then constantly works towards ensuring that each object exists and that the actual state matches the desired state, taking corrective action whenever necessary to maintain or re-converge to the desired state. We say that the state of the Kubernetes cluster is eventually consistent.

The most basic type of object in a Kubernetes cluster is the Pod. A pod is essentially a wrapper around a container, though it is possible for a pod to hold more than one container. Pods are ephemeral, meaning that they can be created and destroyed at will, either directly by the Kubernetes administrator, or through higher-level objects such as Deployments that automatically manage such pods. Therefore, one should not expect any particular pod to exist over a prolonged period of time.

Next, we have ReplicaSets, where each ReplicaSet manages a fixed number of identical pods (replicas), and works hard to ensure that the specified number of replicas exist. So, if for some reason, a replica in a ReplicaSet terminates, the ReplicaSet will automatically spawn a new replica. Conversely, if an extra replica was somehow created (e.g. by the Kubernetes administrator), the ReplicaSet will automatically terminate a replica.

Deployments are another type of object very similar to ReplicaSets, except the former also supports rolling updates and rollbacks with zero downtime. When a new version of the containerized workload is deployed to the cluster, the deployment performs a rolling update; that is, each pod running the old workload is incrementally replaced by a pod running the new one, until all pods have been replaced and running the new workload. As long as the deployment consists of 2 or more replicas, this guarantees that the application will always be available.

In order to expose a Deployment to other workloads within the cluster or the outside world, a Service needs to be created for it, which is essentially an abstraction specifying how a particular workload can be contacted through the network, e.g. what IP address and / or port should be used.

Within a cluster, the workloads can be further segregated into Namespaces, which can be thought of as virtual clusters within the real, physical cluster. This allows related workloads to be grouped together, and for unrelated workloads to be logically separated from one another.

Finally, Kubernetes allows for CustomResourceDefinitions where a Kubernetes developer and / or administrator can define their own objects to extend the functionality of Kubernetes. Needless to say, this is an advanced topic that casual Kubernetes users should not need to worry too much about.

With most of the basic concepts cleared, let's get our hands dirty ;-)

Spinning up a Kubernetes cluster with Amazon EKS

Reference: Getting started with Amazon EKS

Amazon EKS stands for Elastic Kubernetes Service and is a managed Kubernetes offering provided by AWS. The term "managed" roughly means that certain aspects of Kubernetes, such as provisioning each node and connecting them to form the cluster, are managed by the cloud provider so you do not have to worry about it yourself. Of course, this means that there are options for provisioning and configuring a Kubernetes cluster from scratch, which will not be covered in this article:

  • Minikube, kind for spinning up a single-node cluster, intended primarily for development and testing purposes
  • kubeadm for provisioning a multi-cluster node

To create a cluster with Amazon EKS and communicate with it, we need two tools:

  • eksctl: A command-line tool specific to EKS for creating EKS Kubernetes clusters
  • kubectl: The Kubernetes command-line client, used for communicating with a Kubernetes server (cluster)

We also need AWS CLI version 2 or later, configured with an IAM user with sufficient permissions to create the cluster and its associated resources. If not, you may wish to first go through this introductory hands-on session on AWS CLI.

Technically, eksctl is not strictly required and an EKS cluster can be manually created using a combination of the AWS web console and the AWS CLI (and quite possibly with the CLI alone), but the process is rather complex and requires a detailed understanding of the underlying AWS services, roles, permissions, etc. eksctl manages these complexities for us under the hood so we can easily create a cluster with a single command and focus on deploying our apps to Kubernetes.

Now, assuming you have AWS CLI v2 installed and an IAM user with sufficient permissions (such as an IAM administrator), let's download kubectl version 1.21 from AWS:

$ curl -o kubectl https://amazon-eks.s3.us-west-2.amazonaws.com/1.21.2/2021-07-05/bin/linux/amd64/kubectl
Enter fullscreen mode Exit fullscreen mode

It is also possible to download kubectl from upstream; they should be the same so it shouldn't make a difference.

Download the associated checksum file and use it to verify our kubectl download:

$ curl -o kubectl.sha256 https://amazon-eks.s3.us-west-2.amazonaws.com/1.21.2/2021-07-05/bin/linux/amd64/kubectl.sha256
$ sha256sum -c kubectl.sha256
Enter fullscreen mode Exit fullscreen mode

If the download was not corrupted, the second command should output:

kubectl: OK
Enter fullscreen mode Exit fullscreen mode

Finally, make kubectl executable and install it somewhere under your PATH:

$ chmod +x ./kubectl
$ sudo mv kubectl /usr/local/bin
Enter fullscreen mode Exit fullscreen mode

Next, download and install eksctl:

$ curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
$ sudo mv /tmp/eksctl /usr/local/bin
Enter fullscreen mode Exit fullscreen mode

If the installation was successful, running eksctl version should print an appropriate version number and exit.

With the tools installed, let's spin up a cluster:

$ eksctl create cluster
Enter fullscreen mode Exit fullscreen mode

You will see some blue information text printed to the console, and the command may take a while to complete, so do be patient. In my case, it took about 20 minutes before my cluster was ready.

On success, the last line of output should be similar to the following:

2021-12-29 21:30:44 [✔]  EKS cluster "beautiful-unicorn-1640783508" in "us-east-1" region is ready
Enter fullscreen mode Exit fullscreen mode

The name of your cluster (beautiful-unicorn-1640783508 in my case) and the region in which it is deployed (us-east-1) may vary. Note that you could also have explicitly specified a name and region when creating the cluster by passing in the --name and --region flags respectively.

Now check our Kubernetes version. Note that you should see two versions: one for the kubectl client that we downloaded (v1.21.x if you followed the instructions exactly), and one for the server (cluster). However, if kubectl is not correctly configured to connect to the cluster, you may receive an error when attempting to read the Kubernetes version from the server. Therefore, checking the Kubernetes version also serves to check that the cluster is up and running, and that we can connect to it with kubectl.

$ kubectl version --short
Enter fullscreen mode Exit fullscreen mode

(omitting the --short flag prints detailed version information in JSON format)

Here, I get:

Client Version: v1.21.2-13+d2965f0db10712
Server Version: v1.21.2-eks-06eac09
Enter fullscreen mode Exit fullscreen mode

Another thing to note is that the Kubernetes client and server versions should only be at most 1 minor version apart. So if you downloaded the absolute latest kubectl version (1.23 at the time of writing), you would see a warning about incompatible Kubernetes client / server versions as the server is at 1.21 which is 2 minor versions behind. In that case, you will have to downgrade your version of kubectl accordingly.

Now that our cluster is ready and we can connect to it, let's fetch some info about our cluster.

Get a list of all clusters we have created with eksctl:

$ eksctl get cluster
2021-12-29 21:47:35 [ℹ]  eksctl version 0.77.0
2021-12-29 21:47:35 [ℹ]  using region us-east-1
NAME                REGION      EKSCTL CREATED
beautiful-unicorn-1640783508    us-east-1   True
Enter fullscreen mode Exit fullscreen mode

Get a list of all nodes in our cluster:

$ kubectl get nodes
NAME                             STATUS   ROLES    AGE   VERSION
ip-192-168-23-192.ec2.internal   Ready    <none>   20m   v1.21.5-eks-bc4871b
ip-192-168-61-32.ec2.internal    Ready    <none>   20m   v1.21.5-eks-bc4871b
Enter fullscreen mode Exit fullscreen mode

Get a list of all namespaces in our cluster:

$ kubectl get namespaces
NAME              STATUS   AGE
default           Active   30m
kube-node-lease   Active   30m
kube-public       Active   30m
kube-system       Active   30m
Enter fullscreen mode Exit fullscreen mode

Get a list of services in the default namespace:

$ kubectl get services
NAME         TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
kubernetes   ClusterIP   10.100.0.1   <none>        443/TCP   31m
Enter fullscreen mode Exit fullscreen mode

Get a list of services in the kube-system namespace:

$ kubectl get services --namespace kube-system
NAME       TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)         AGE
kube-dns   ClusterIP   10.100.0.10   <none>        53/UDP,53/TCP   32m
Enter fullscreen mode Exit fullscreen mode

Get a list of pods in the default namespace:

$ kubectl get pods
No resources found in default namespace.
Enter fullscreen mode Exit fullscreen mode

There are no pods in the default namespace because we haven't deployed any apps yet. However, a number of pods were created in other namespaces (such as kube-system) for the control plane:

$ kubectl get pods --all-namespaces
NAMESPACE     NAME                       READY   STATUS    RESTARTS   AGE
kube-system   aws-node-ftwmx             1/1     Running   0          28m
kube-system   aws-node-km5k2             1/1     Running   0          29m
kube-system   coredns-66cb55d4f4-8645g   1/1     Running   0          37m
kube-system   coredns-66cb55d4f4-l5wxg   1/1     Running   0          37m
kube-system   kube-proxy-cmpr2           1/1     Running   0          29m
kube-system   kube-proxy-h5phz           1/1     Running   0          28m
Enter fullscreen mode Exit fullscreen mode

The above command fetches pods from all namespaces. Here, we see all control plane components were automatically deployed to the kube-system namespace.

Now that everything is working correctly, let's deploy our first Pod!

Deploying a single Pod to our EKS cluster

Reference: Deploy a sample application

Let's first create a namespace for our website, to separate it from other workloads. Recall that Kubernetes favors a declarative approach, whereby we describe objects with YAML configuration files and apply them to the cluster.

Save the following in a file namespace.yaml:

apiVersion: v1
kind: Namespace
metadata:
  labels:
    app: donaldsebleung-com
  name: donaldsebleung-com
Enter fullscreen mode Exit fullscreen mode

Let's look at some of the fields:

  • kind: Describes the kind of object we are defining; in this case, a Namespace
  • labels: A set of key-value pairs used to identify and keep track of objects. In this case, we define a single label app with value donaldsebleung-com
  • name: The name of our object. Here, we call it donaldsebleung-com

Now let's apply it to our cluster:

$ kubectl apply -f namespace.yaml
namespace/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

As seen above, we apply a YAML configuration file with kubectl apply. The -f <FILE> option specifies a single file to apply.

The output indicates that the namespace was successfully created, but let's list all namespaces again to be safe:

$ kubectl get namespaces
NAME                 STATUS   AGE
default              Active   44h
donaldsebleung-com   Active   8s
kube-node-lease      Active   44h
kube-public          Active   44h
kube-system          Active   44h
Enter fullscreen mode Exit fullscreen mode

We can also get info for a single object, like so: kubectl get <OBJECT_KIND>/<OBJECT_NAME>:

$ kubectl get namespace/donaldsebleung-com
NAME                 STATUS   AGE
donaldsebleung-com   Active   11m
Enter fullscreen mode Exit fullscreen mode

Since a namespace primarily exists to partition object within a cluster, they aren't very interesting on their own so we don't see much being printed out. But we can get more information on our namespace by specifying the -o yaml option, which outputs the information about the object in YAML format:

$ kubectl get namespace/donaldsebleung-com -o yaml
apiVersion: v1
kind: Namespace
metadata:
  annotations:
    kubectl.kubernetes.io/last-applied-configuration: |
      {"apiVersion":"v1","kind":"Namespace","metadata":{"annotations":{},"labels":{"app":"donaldsebleung-com"},"name":"donaldsebleung-com"}}
  creationTimestamp: "2021-12-31T09:56:19Z"
  labels:
    app: donaldsebleung-com
    kubernetes.io/metadata.name: donaldsebleung-com
  name: donaldsebleung-com
  resourceVersion: "367633"
  uid: ef89d626-1437-41b6-b969-db44eaa47d6c
spec:
  finalizers:
  - kubernetes
status:
  phase: Active
Enter fullscreen mode Exit fullscreen mode

Notice this contains all the information we specified in our namespace.yaml file, and more. Tip: if you're not sure where to start when writing a YAML file for a particular kind of object, printing the YAML configuration for other objects of the same kind could serve as a reference.

Now let's define a pod in our newly created namespace. Save the following configuration in a pod.yaml file:

apiVersion: v1
kind: Pod
metadata:
  labels:
    app: donaldsebleung-com
  name: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  containers:
  - name: donaldsebleung-com
    image: donaldsebleung/donaldsebleung-com:0.2.0
    ports:
    - containerPort: 8443
Enter fullscreen mode Exit fullscreen mode

Here, we see that the kind of object is a Pod instead of a namespace. Let's look at some new (and existing) fields as well:

  • We added an app label to our pod again, with value donaldsebleung-com. Unlike the case of the namespace where the label was purely declarative, a label (or set of labels) on a pod has practical uses we'll see shortly
  • The name of our pod is donaldsebleung-com, which is identical to that of our namespace. In general, distinct objects only require distinct names if (1) they belong to the same namespace, and (2) they are the same kind of object
  • The namespace field under metadata specifies that this pod should be created in the donaldsebleung-com namespace. If omitted, the pod is created in the default namespace instead
  • The spec top-level field describes what our pod is actually made of
  • Under containers, the name field specifies the name of a container inside our pod. Recall that a pod can have multiple containers; hence we see a dash - before the name field, indicating that we are specifying a list of containers, though in this case, the length of the list is 1
  • The image field specifies which image our container should be based on. Here, we use an image with tag donaldsebleung/donaldsebleung-com:0.2.0, built from the following Dockerfile:
FROM ubuntu:focal
RUN apt-get update && apt-get install -y wget openjdk-11-jdk
RUN wget https://github.com/DonaldKellett/donaldsebleung-com/archive/refs/tags/v0.2.0.tar.gz && tar xvf v0.2.0.tar.gz && rm v0.2.0.tar.gz
RUN mv donaldsebleung-com-0.2.0 /app
WORKDIR /app
RUN ./mvnw package
CMD ["/usr/bin/java", "-jar", "/app/target/personal-website-0.0.1-SNAPSHOT.jar"]
Enter fullscreen mode Exit fullscreen mode
  • The containerPort field under ports exposes port 8443 from the container. This is because our web server serves an HTTPS web page on port 8443

Now let's apply the config:

$ kubectl apply -f pod.yaml
pod/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

View pods in our namespace (-n is short for --namespace):

$ kubectl get pods -n donaldsebleung-com
NAME                 READY   STATUS    RESTARTS   AGE
donaldsebleung-com   1/1     Running   0          85s
Enter fullscreen mode Exit fullscreen mode

Here we see it's up and running. If not, e.g. you see 0/1 under READY, wait for a short while and run the same command again until the pod is ready.

Congratulations! You've successfully deployed your first pod to a Kubernetes cluster. But wait - how do we know the web server is actually up and running? Recall that pods are ephemeral - they can be created and destroyed at will, either by the cluster administrator or by higher-level objects such as deployments - so we cannot rely on a particular pod always being available. To access the web server inside our pod, we'll need to expose our pod to the rest of the cluster (and later, to the outside world) via a Service.

Exposing our pod to the cluster via a Service

Reference: Deploy a sample application

Recall that a Service is an abstraction that exposes running workloads (in our case, a single pod). There are 4 types of services at the time of writing:

  • ClusterIP: exposes the workload to the rest of the cluster through an internal IP, but not to the outside world
  • NodePort: exposes the workload through a specified port on all nodes in the cluster. This is the simplest way to expose a workload to the outside world, but is rarely the best choice
  • LoadBalancer: exposes the workload through a dedicated load balancer. The exact details of how the load balancer is provisioned, etc., depends on the cloud provider
  • ExternalName: yet another type of service we won't cover in this article

(source)

More details about these types of services and how they differ can be found through in this excellent writeup.

Here, we'll use a ClusterIP service and explore our website within the cluster shortly. Save the following in a clusterip-service.yaml file:

apiVersion: v1
kind: Service
metadata:
  labels:
    app: donaldsebleung-com
  name: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  selector:
    app: donaldsebleung-com
  type: ClusterIP
  ports:
  - name: https
    port: 443
    targetPort: 8443
    protocol: TCP
Enter fullscreen mode Exit fullscreen mode

Again, a brief overview of the fields used:

  • Under spec, we have a selector field. This selects pods based on their labels that the service should target. Here, we specify that our service should target pods with an app label of value donaldsebleung-com. That's why I told you labels on pods are important and not purely decorative. See? ;-)
  • The type is ClusterIP. This produces an internal IP we can use within the cluster to access the service
  • Under ports, the first and only item has port and targetPort fields. The targetPort field specifies the port within the pod(s) that network requests should be forwarded to; in this case, 8443, since that's where our web server is listening at. The port field specifies the port through which the service is accessed from outside
  • The protocol field specifies the transport layer protocol used (e.g. TCP, UDP, ICMP); TCP in our case

So our service provides an IP within the cluster that forwards HTTPS requests from TCP port 443 (the standard HTTPS port) to TCP port 8443. The net result is that within the cluster, instead of having to access the website as https://<clusterIP>:8443 , we can access it as https://<clusterIP> instead like we would a normal website.

Apply the config:

$ kubectl apply -f clusterip-service.yaml
service/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

Confirm the service is created:

$ kubectl get services -n donaldsebleung-com
NAME                 TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)   AGE
donaldsebleung-com   ClusterIP   10.100.36.224   <none>        443/TCP   17m
Enter fullscreen mode Exit fullscreen mode

Here, we see an IP 10.100.36.224 accessible from within the cluster. Notice that the EXTERNAL-IP is <none>, i.e. we still cannot access the service from outside the cluster.

To access the service from within a cluster, spawn a shell inside our pod:

$ kubectl exec -n donaldsebleung-com -it donaldsebleung-com -- /bin/bash
Enter fullscreen mode Exit fullscreen mode

A breakdown of the command used:

  • kubectl exec: similar to docker exec, but here we execute a command within the specified pod
  • -n donaldsebleung-com: in the donaldsebleung-com namespace
  • -it donaldsebleung-com: allocate an interactive tty (same as in Docker) for the pod with name donaldsebleung-com
  • -- /bin/bash: pass the remaining arguments to the pod - here we pass in /bin/bash to execute the Bash shell

If successful, you should see a root shell and the working directory is /app. In the root shell, fetch the webpage with wget and print to stdout, replacing 10.100.36.224 with your cluster IP:

# wget -qO - https://10.100.36.224 --no-check-certificate
Enter fullscreen mode Exit fullscreen mode

The --no-check-certificate option is required since the web server uses a self-signed certificate by default.

If successful, you should see an HTML page being printed:

<!DOCTYPE HTML>
<!--
    Hyperspace by HTML5 UP
    html5up.net | @ajlkn
    Free for personal and commercial use under the CCA 3.0 license (html5up.net/license)
-->
...
Enter fullscreen mode Exit fullscreen mode

Now that we've seen how to expose a service within the cluster, let's see how to do the same but to the outside world. But before that, let's cover Deployments - a higher-level object that manages a ReplicaSet of pods and takes care of rolling updates and rollbacks.

Clean up our existing pod and service with the following commands:

$ kubectl delete -f clusterip-service.yaml
$ kubectl delete -f pod.yaml
Enter fullscreen mode Exit fullscreen mode

kubectl delete deletes the object(s) specified in the provided YAML file.

Creating our first Deployment

Reference: Deploy a sample application

A Deployment manages a ReplicaSet, which in turn manages a fixed number of replicas of Pods. While a ReplicaSet only ensures that the number of pods remains at the desired number of replicas, a Deployment offers rolling update and rollback functionality as well by replacing pods in the deployment incrementally, so there is no downtime.

Save the following in a file deployment.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: donaldsebleung-com
  labels:
    app: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  replicas: 3
  selector:
    matchLabels:
      app: donaldsebleung-com
  template:
    metadata:
      labels:
        app: donaldsebleung-com
      namespace: donaldsebleung-com
    spec:
      containers:
      - name: donaldsebleung-com
        image: donaldsebleung/donaldsebleung-com:0.2.0
        ports:
        - containerPort: 8443
Enter fullscreen mode Exit fullscreen mode

Here, in the spec:

  • replicas indicates how many pod replicas should be created; in this case 3
  • selector indicates how the Deployment keeps track of its pods. Here, we matchLabels where the app label on the pod is equal to donaldsebleung-com
  • template: the template to use for each pod in the deployment. Notice this is identical to our pod.yaml except leaving out apiVersion, kind and metadata.name

Apply the config:

$ kubectl apply -f deployment.yaml
deployment.apps/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

Check deployments in our namespace:

$ kubectl get deployments -n donaldsebleung-com
NAME                 READY   UP-TO-DATE   AVAILABLE   AGE
donaldsebleung-com   3/3     3            3           17m
Enter fullscreen mode Exit fullscreen mode

We see here that all 3 replicas of the donaldsebleung-com deployment are up and running. If not, e.g. you see 2/3, wait a few seconds and try again, until all replicas are up.

Let's expose our deployment to the outside world using a load balancer. But as per Network load balancing on Amazon EKS, we need to first deploy AWS Load Balancer Controller to our EKS cluster.

Deploying AWS Load Balancer Controller to our EKS cluster

Reference: AWS Load Balancer Controller

Note: this section is highly specific to Amazon EKS and contains a lot of AWS-related details that are not applicable to other managed Kubernetes offerings or Kubernetes in general. Don't feel too bad if you find yourself blindly copy-pasting commands in this section without fully understanding what is going on (-:

First we need to create an IAM OIDC identity provider for our cluster (source) - replace beautiful-unicorn-1640783508 with the actual name of your cluster:

$ eksctl utils associate-iam-oidc-provider \
  --cluster beautiful-unicorn-1640783508 \
  --approve
Enter fullscreen mode Exit fullscreen mode

Now download "an IAM policy for the AWS Load Balancer Controller that allows it to make calls to AWS APIs on your behalf" (source), and use it to create an IAM policy:

$ curl -o iam_policy.json https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.3.1/docs/install/iam_policy.json
$ aws iam create-policy \
  --policy-name AWSLoadBalancerControllerIAMPolicy \
  --policy-document file://iam_policy.json
Enter fullscreen mode Exit fullscreen mode

Now get our account ID and make note of it:

$ aws sts get-caller-identity
Enter fullscreen mode Exit fullscreen mode

In my case, my account ID is 477657529190.

Now create an IAM role for use with a Kubernetes service account (view the linked reference article for details), replacing the cluster name and account ID as appropriate:

$ eksctl create iamserviceaccount \
  --cluster=beautiful-unicorn-1640783508 \
  --namespace=kube-system \
  --name=aws-load-balancer-controller \
  --attach-policy-arn=arn:aws:iam::477657529190:policy/AWSLoadBalancerControllerIAMPolicy \
  --override-existing-serviceaccounts \
  --approve
Enter fullscreen mode Exit fullscreen mode

Finally, we are ready to install the AWS Load Balancer Controller itself (-: Install cert-manager to our cluster for managing certificate-related stuff:

$ kubectl apply \
  --validate=false \
  -f https://github.com/jetstack/cert-manager/releases/download/v1.5.4/cert-manager.yaml
Enter fullscreen mode Exit fullscreen mode

This may take a while to execute (no more than a few dozen seconds) as Kubernetes creates a large number of objects.

Now download the controller specification:

$ curl -Lo v2_3_1_full.yaml https://github.com/kubernetes-sigs/aws-load-balancer-controller/releases/download/v2.3.1/v2_3_1_full.yaml
Enter fullscreen mode Exit fullscreen mode

Open the downloaded file v2_3_1_full.yaml in your favorite text editor (mine is Vim) and make the following changes:

  • Delete the ServiceAccount section of the file. It looks like this:
apiVersion: v1
kind: ServiceAccount
metadata:
  labels:
    app.kubernetes.io/component: controller
    app.kubernetes.io/name: aws-load-balancer-controller
  name: aws-load-balancer-controller
  namespace: kube-system
Enter fullscreen mode Exit fullscreen mode
  • Replace your-cluster-name in the deployment spec with the actual name of your cluster

Now apply the config:

$ kubectl apply -f v2_3_1_full.yaml
Enter fullscreen mode Exit fullscreen mode

Again, this make take a few seconds.

To gain peace of mind, verify the controller is properly installed:

$ kubectl get deployment/aws-load-balancer-controller -n kube-system
NAME                           READY   UP-TO-DATE   AVAILABLE   AGE
aws-load-balancer-controller   1/1     1            1           105s
Enter fullscreen mode Exit fullscreen mode

Phew, that was complicated! Back to the interesting stuff ;-)

Expose our deployment to the outside world using a load balancer

Reference: Deploy a sample application

Let's make a copy of our clusterip-service.yaml. We'll name the copy loadbalancer-service.yaml:

$ cp clusterip-service.yaml loadbalancer-service.yaml
Enter fullscreen mode Exit fullscreen mode

Open loadbalancer-service.yaml and change the line:

type: ClusterIP
Enter fullscreen mode Exit fullscreen mode

to:

type: LoadBalancer
Enter fullscreen mode Exit fullscreen mode

Yup, that's it. Now apply the config:

$ kubectl apply -f loadbalancer-service.yaml
service/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

Get the service details. Notice how the type is now LoadBalancer, and we have an external IP (or DNS name, rather)!

$ kubectl get services -n donaldsebleung-com
NAME                 TYPE           CLUSTER-IP      EXTERNAL-IP                                                              PORT(S)         AGE
donaldsebleung-com   LoadBalancer   10.100.71.229   a9e75f2b7fc344b37becbe607134dfa5-772464237.us-east-1.elb.amazonaws.com   443:32501/TCP   47s
Enter fullscreen mode Exit fullscreen mode

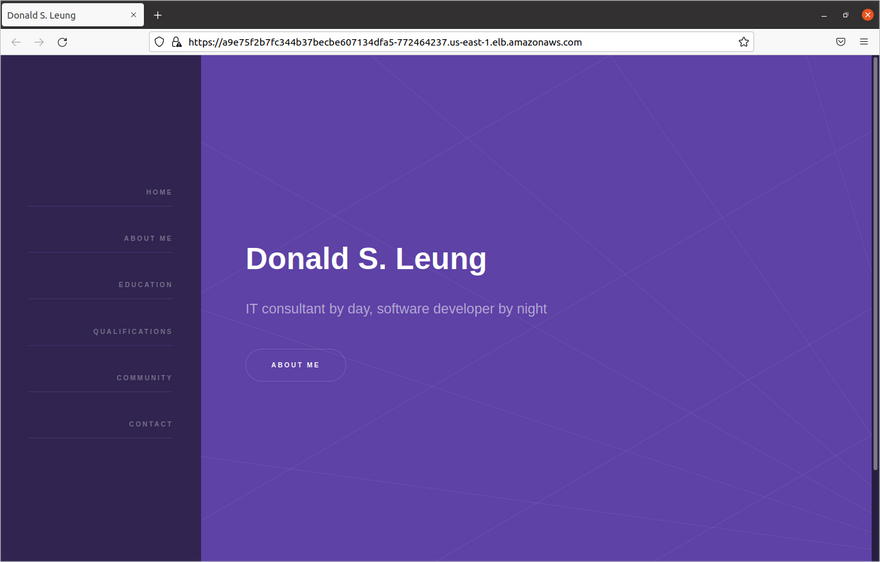

Now visit https://a9e75f2b7fc344b37becbe607134dfa5-772464237.us-east-1.elb.amazonaws.com , replacing the external DNS name as appropriate for your scenario. The browser may display a scary warning about a self-signed certificate. Ignore it, and proceed with viewing the website content:

donaldsebleung/donaldsebleung-com:0.2.0 on Kubernetes

Feel free to poke around the website and learn more about me (shameless promotion here :-P). When you're done, continue with the rest of this article.

You did it! You exposed your deployment to the outside world using a load balancer and saw the results in your browser.

Rolling updates

A major advantage of deployments over standalone pods (or even ReplicaSets) is the ability to perform a rolling update without application downtime. It does this by replacing the pods in the deployment one by one (or as configured in the YAML file) until all the old pods have been replaced by new ones. Let's see this in action.

Copy our existing deployment.yaml to deployment-patched.yaml:

$ cp deployment.yaml deployment-patched.yaml
Enter fullscreen mode Exit fullscreen mode

Now update the container image used in each of the pods, from donaldsebleung/donaldsebleung-com:0.2.0 to donaldsebleung/donaldsebleung-com:0.2.0-1, which simply replaces the slogan "IT consultant by day, software developer by night" on the homepage with "Cloud, virtualization and open-source enthusiast", because I've recently realized that the old slogan doesn't fit well with the rest of the content on my website. Your modified deployment-patched.yaml file should look like this:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: donaldsebleung-com
  labels:
    app: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  replicas: 3
  selector:
    matchLabels:
      app: donaldsebleung-com
  template:
    metadata:
      labels:
        app: donaldsebleung-com
      namespace: donaldsebleung-com
    spec:
      containers:
      - name: donaldsebleung-com
        image: donaldsebleung/donaldsebleung-com:0.2.0-1
        ports:
        - containerPort: 8443
Enter fullscreen mode Exit fullscreen mode

Interested learners may refer to the Dockerfile for 0.2.0-1, which simply applies a patch to the downloaded source code before building the project:

FROM ubuntu:focal
RUN apt-get update && apt-get install -y wget patch openjdk-11-jdk
RUN wget https://github.com/DonaldKellett/donaldsebleung-com/archive/refs/tags/v0.2.0.tar.gz && tar xvf v0.2.0.tar.gz && rm v0.2.0.tar.gz
RUN mv donaldsebleung-com-0.2.0 /app
WORKDIR /app
COPY index.patch .
RUN patch -p0 < index.patch
RUN ./mvnw package
CMD ["/usr/bin/java", "-jar", "/app/target/personal-website-0.0.1-SNAPSHOT.jar"]
Enter fullscreen mode Exit fullscreen mode

Here's the patch, if you're interested:

--- src/main/resources/templates/index.html 2021-12-24 21:54:03.000000000 +0800
+++ src/main/resources/templates/index_new.html 2021-12-30 21:39:42.666305634 +0800
@@ -29,7 +29,7 @@
                    <section id="intro" class="wrapper style1 fullscreen fade-up">
                        <div class="inner">
                            <h1>Donald S. Leung</h1>
-                           <p>IT consultant by day, software developer by night</p>
+                           <p>Cloud, virtualization and open source enthusiast</p>
                            <ul class="actions">
                                <li><a href="/about" class="button scrolly">About me</a></li>
                            </ul>
@@ -55,4 +55,4 @@
            <script src="assets/js/main.js"></script>

    </body>
-</html>
\ No newline at end of file
+</html>
Enter fullscreen mode Exit fullscreen mode

Now apply the config:

$ kubectl apply -f deployment-patched.yaml
deployment.apps/donaldsebleung-com configured
Enter fullscreen mode Exit fullscreen mode

And refresh your browser multiple times. Notice that the website should be up all the time - there should be no moment where it is not available. Furthermore, for a while, you should see the slogan on the homepage alternate between the old and new versions. Eventually, though, it should converge to the following, which indicates all pods in the deployment have been replaced to use the new container image:

donaldsebleung/donaldsebleung-com:0.2.0-1 on Kubernetes

Before we conclude, let's look at one more feature: autoscaling deployments with HorizontalPodAutoscaler. But first, we need to install the Kubernetes metric server, which provides aggregate resource usage data needed for autoscaling.

Installing the Kubernetes metric server

Reference: Installing the Kubernetes metrics server

Just apply the appropriate YAML config, as follows:

$ kubectl apply -f https://github.com/kubernetes-sigs/metrics-server/releases/latest/download/components.yaml
Enter fullscreen mode Exit fullscreen mode

Now confirm it is properly deployed:

$ kubectl get deployment/metrics-server -n kube-system
NAME             READY   UP-TO-DATE   AVAILABLE   AGE
metrics-server   1/1     1            1           83s
Enter fullscreen mode Exit fullscreen mode

We're good to go.

Autoscaling deployments with HorizontalPodAutoscaler

Reference: HorizontalPodAutoscaler Walkthrough

Currently, our deployment has a fixed number of 3 pods, which is good enough for testing and demonstration purposes. But what if the web traffic is low at a particular time interval? Would maintaining 3 pods in that case be a waste of resources? On the other hand, what if we experience a sudden surge in traffic? Is 3 pods enough to handle the surge gracefully without degradation in performance?

Fortunately, through HorizontalPodAutoscaler (HPA), Kubernetes allows you to automatically scale the number of replicas in a Deployment depending on some metric(s) such as CPU utilization per pod. But first, we need to define some resource limits for our pods in the deployment. Save the following in a file deployment-patched-with-limit.yaml:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: donaldsebleung-com
  labels:
    app: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  replicas: 3
  selector:
    matchLabels:
      app: donaldsebleung-com
  template:
    metadata:
      labels:
        app: donaldsebleung-com
      namespace: donaldsebleung-com
    spec:
      containers:
      - name: donaldsebleung-com
        image: donaldsebleung/donaldsebleung-com:0.2.0-1
        ports:
        - containerPort: 8443
        resources:
          limits:
            cpu: 500m
          requests:
            cpu: 200m
Enter fullscreen mode Exit fullscreen mode

This is identical to deployment-patched.yaml except we added the following part:

resources:
  limits:
    cpu: 500m
  requests:
    cpu: 200m
Enter fullscreen mode Exit fullscreen mode

Here, 1m represents one-thousandth (or 0.001) of a CPU core, so limits.cpu: 500m means each pod is not allowed to use more than 0.5 CPU cores. requests.cpu: 200m means that each pod requests 0.2 CPU cores.

Apply the config:

$ kubectl apply -f deployment-patched-with-limit.yaml
deployment.apps/donaldsebleung-com configured
Enter fullscreen mode Exit fullscreen mode

Since Kubernetes favors a declarative approach, notice we did not need to delete the deployment and re-deploy - we just had to apply the new YAML config and Kubernetes will configure the deployment to converge towards the new spec.

Now save the following in hpa.yaml:

apiVersion: autoscaling/v1
kind: HorizontalPodAutoscaler
metadata:
  labels:
    app: donaldsebleung-com
  name: donaldsebleung-com
  namespace: donaldsebleung-com
spec:
  maxReplicas: 10
  minReplicas: 1
  scaleTargetRef:
    apiVersion: apps/v1
    kind: Deployment
    name: donaldsebleung-com
  targetCPUUtilizationPercentage: 50
Enter fullscreen mode Exit fullscreen mode

Here:

  • maxReplicas is the maximum number of replicas we should have, regardless of the load. We set this to 10, so there can never be more than 10 replicas
  • minReplicas: same as maxReplicas but sets the minimum. Here we make sure we always have at least 1 replica
  • scaleTargetRef: what object does our HPA target? Here, we target the deployment donaldsebleung-com by name
  • targetCPUUtilizationPercentage: what percentage of CPU utilization relative to the CPU limit we should aim for in each pod. Here, we specify 50%, i.e. we aim for 0.5 * 500m = 250m = 0.25 CPU cores used per pod

Apply the config:

$ kubectl apply -f hpa.yaml
horizontalpodautoscaler.autoscaling/donaldsebleung-com created
Enter fullscreen mode Exit fullscreen mode

Wait a few seconds, then query our HPA:

$ kubectl get hpa -n donaldsebleung-com
NAME                 REFERENCE                       TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
donaldsebleung-com   Deployment/donaldsebleung-com   0%/50%    1         10        1          20m
Enter fullscreen mode Exit fullscreen mode

Notice how we now have 1 replica instead of 3. This is because there is no traffic to be handled, so the pods aren't using any noticeable amount of CPU. In response, the HPA scaled our deployment down to 1 replica in order to conserve resources.

Another thing: hpa is short for horizontalpodautoscaler. Our command might as well have been:

$ kubectl get horizontalpodautoscalers -n donaldsebleung-com
Enter fullscreen mode Exit fullscreen mode

But hpa is easier to type. In fact, this isn't the only abbreviation we can use:

Object Shorthand
Namespace ns
Pod po
ReplicaSet rs
Deployment deploy
Service svc

I personally find the full names more descriptive and readable. But if you're lazy, or the full name is insanely long (e.g. horizontalpodautoscaler), feel free to use the shorthands instead.

Now try to generate some load by querying the site repeatedly. You might want to open this in a new terminal window (or tab), to keep it running while we make our observations in the original window (replace the external DNS name accordingly):

$ while true; do wget -qO - https://a9e75f2b7fc344b37becbe607134dfa5-772464237.us-east-1.elb.amazonaws.com --no-check-certificate > /dev/null; done
Enter fullscreen mode Exit fullscreen mode

You might even want to run it in multiple terminal windows; I opened a few dozen of them myself (-:

Wait a short while (maybe a minute or two), and query our HPA again:

$ kubectl get hpa -n donaldsebleung-com
NAME                 REFERENCE                       TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
donaldsebleung-com   Deployment/donaldsebleung-com   39%/50%   1         10        10         37m
Enter fullscreen mode Exit fullscreen mode

Look, now the CPU utilization has gone up and our HPA responded by scaling our deployment up to 10 replicas!

Once you're done exploring, stop bombarding the endpoint with requests by closing the appropriate terminal windows / tabs. Wait a few minutes, and you should see the CPU utilization go down again and the number of replicas scaled back down to 1:

$ kubectl get hpa -n donaldsebleung-com
NAME                 REFERENCE                       TARGETS   MINPODS   MAXPODS   REPLICAS   AGE
donaldsebleung-com   Deployment/donaldsebleung-com   1%/50%    1         10        1          45m
Enter fullscreen mode Exit fullscreen mode

Cleanup

Let's delete our namespace. Since we put every other object we've created in this namespace, this should delete those objects as well:

$ kubectl delete -f namespace.yaml
namespace "donaldsebleung-com" deleted
Enter fullscreen mode Exit fullscreen mode

Now delete our cluster (replace the name accordingly):

$ eksctl delete cluster -n beautiful-unicorn-1640783508
Enter fullscreen mode Exit fullscreen mode

This may take a few minutes. In the end, you should see something like:

2022-01-01 12:30:38 [✔]  all cluster resources were deleted
Enter fullscreen mode Exit fullscreen mode

Conclusion

In this hands-on session, we learned:

  • What Kubernetes is
  • How it relates to the microservice architecture used in many modern applications
  • Key concepts and objects in Kubernetes
  • How Kubernetes works; in particular, the declarative approach it favors
  • How to actually apply these concepts to a real, multi-node Kubernetes cluster by leveraging a managed Kubernetes offering by AWS known as Amazon EKS

Of course, this is just the tip of the iceberg - there are so many more features in Kubernetes that we have yet to explore. If this article piqued your interest in Kubernetes, consider learning more about it through the following resources (or otherwise):

Until then, happy new year!

References

Discussion (0)
