Register and Manage Linux Servers with Azure Arc Tutorial

Register and Manage Linux Servers with Azure Arc Tutorial

In this tutorial, I want to explore how to onboard a Ubuntu server to Azure using Azure Arc. The tutorial will walk you through registering the necessary Azure resource providers, registering your server in Azure by installing the Azure Arc agent and lastly assigning a governance policy to the server using Azure Policy.

Prerequisites

Register Azure resource providers

An Azure resource provider is a collection of REST operations that provide functionality for an Azure service.

To use Azure Arc-enabled servers, the following Azure resource providers must be registered in your subscription:

  • Microsoft.HybridCompute
  • Microsoft.GuestConfiguration
  • Microsoft.HybridConnectivity
  • Microsoft.AzureArcData (if you plan to Arc-enable SQL Servers)

To enable them you can use Azure PowerShell, Azure CLI or the Azure portal. We’re going to use Azure CLI this time.

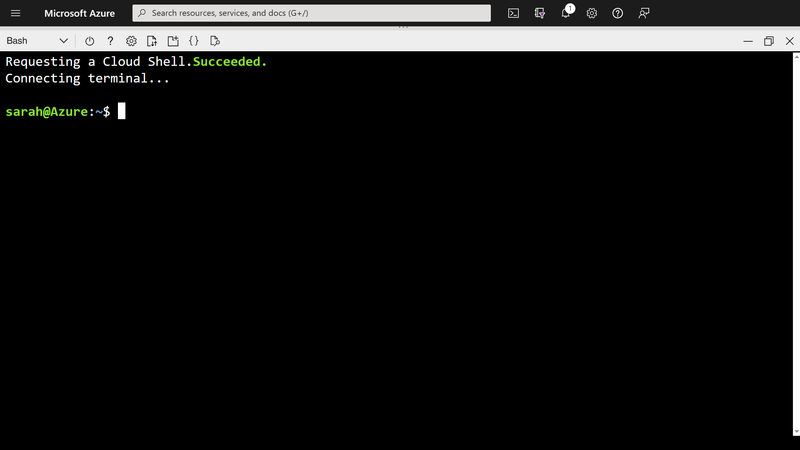

Head over to https://shell.portal.com

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Cloud Shell

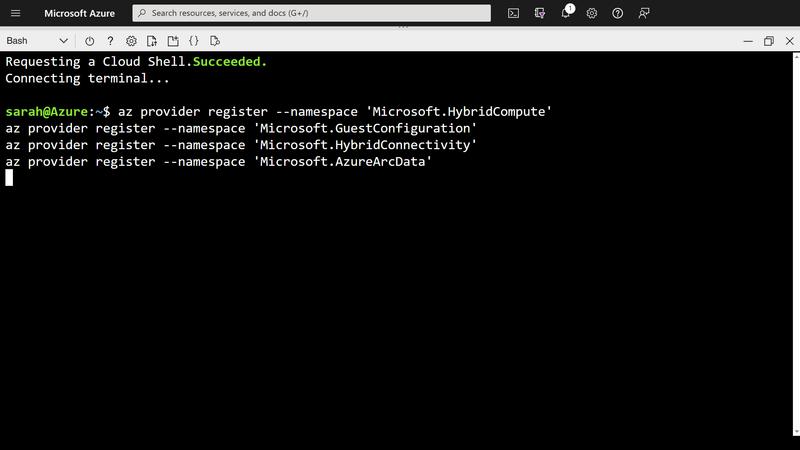

Paste the following code into your shell window:

az provider register --namespace 'Microsoft.HybridCompute'
az provider register --namespace 'Microsoft.GuestConfiguration'
az provider register --namespace 'Microsoft.HybridConnectivity'
az provider register --namespace 'Microsoft.AzureArcData'

Enter fullscreen mode Exit fullscreen mode

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Cloud Shell

Registering an Existing Ubuntu Server

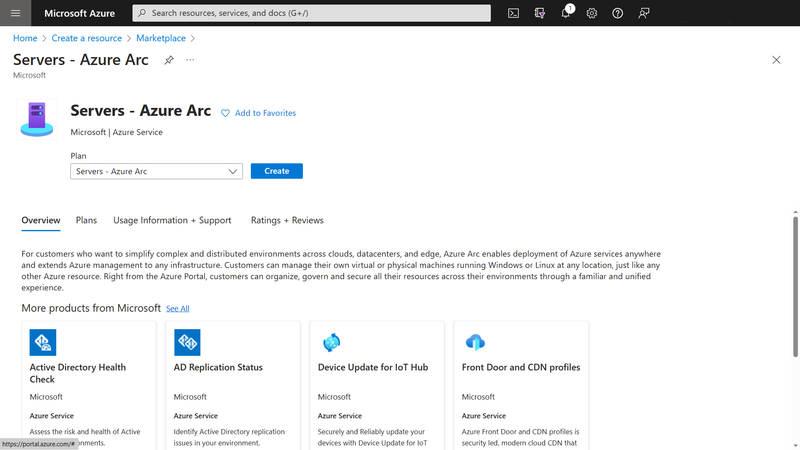

From the Azure Portal , search for Servers – Azure Arc to launch the wizard.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

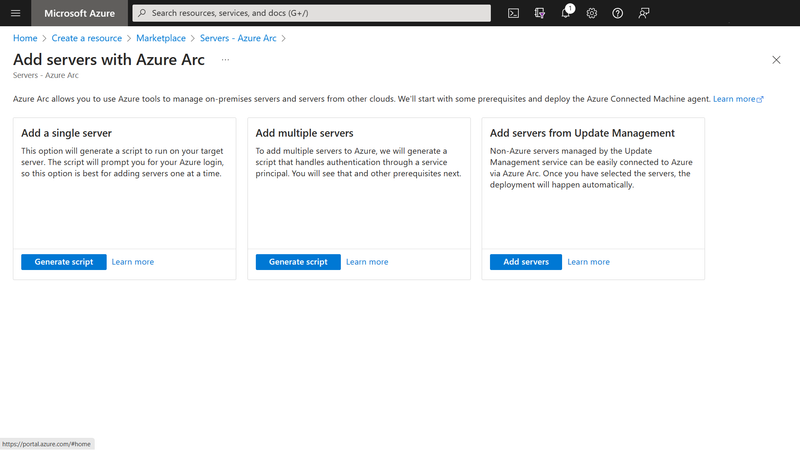

You can either register servers individually, through a bulk process or via Update Management. In this tutorial, we are going to select the first option and add servers with an interactive script.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

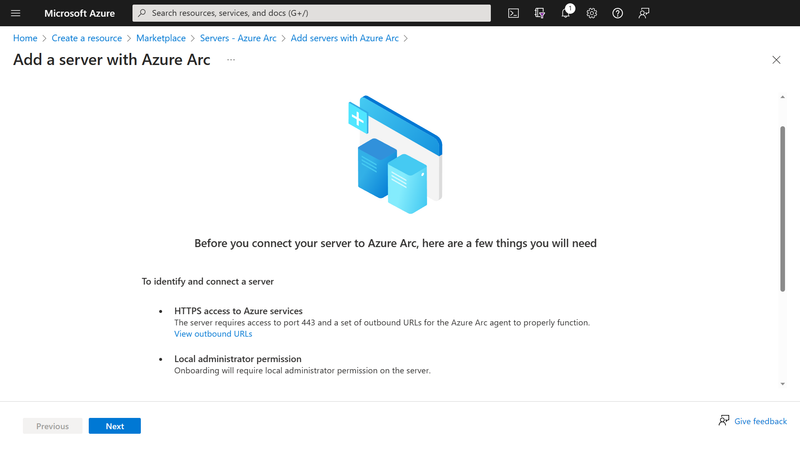

There are some prerequisites you need to meet, ensure you have met them before going any further.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

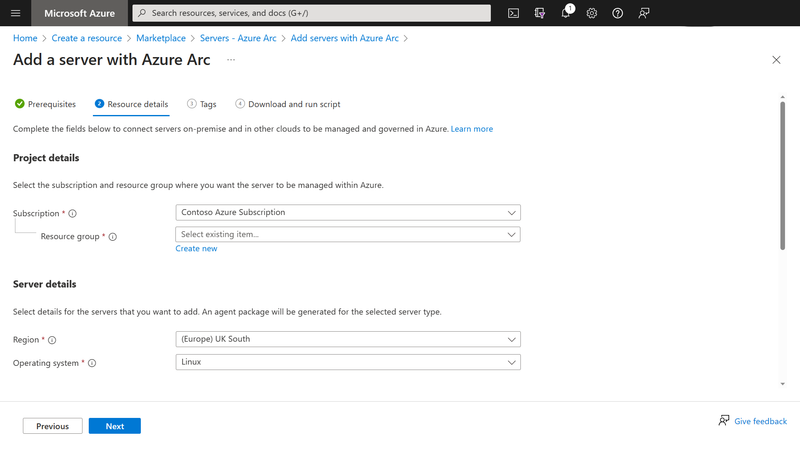

In the next step, you are asked to select some information. You are asked to select the subscription, resource group, operating system (OS), connectivity method and region. For this tutorial, ensure you select Linux as the OS and move to the next step.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

The next step is to populate any values for the suggested tags or you can create your own.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

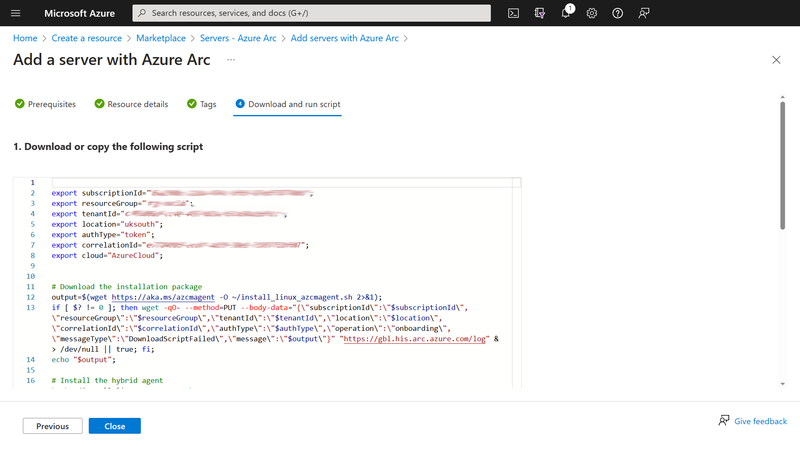

The last screen will show you the command to run on the Ubuntu server. Copy it and close the wizard.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Server - Azure Arc

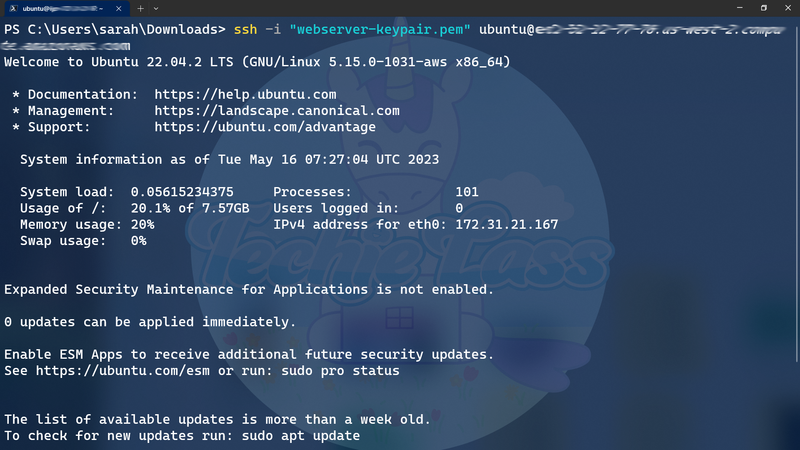

Now you have the script, SSH onto your Ubuntu machine. Paste the commands that were generated from the previous step.

Register and Manage Linux Servers with Azure Arc Tutorial
Connecting to Linux server via SSH

During the installation you will be asked to go to https://microsoft.com/devicelogin to authenticate this new machine.

Within a few minutes, you will notice the registered machine in the resource group.

Applying a Policy to Registered Servers

The next process we want to follow is to apply a policy to find any registered servers that allow remote connections from accounts without passwords.

From the Azure Portal , search for Servers – Azure Arc.

Select the server you just onboarded.

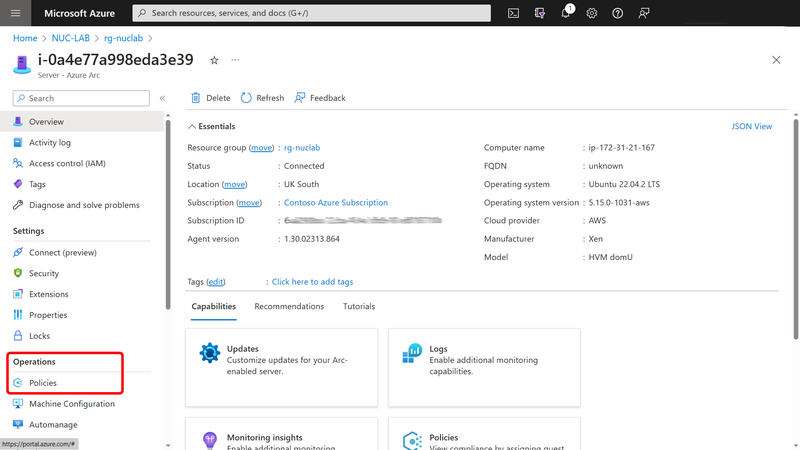

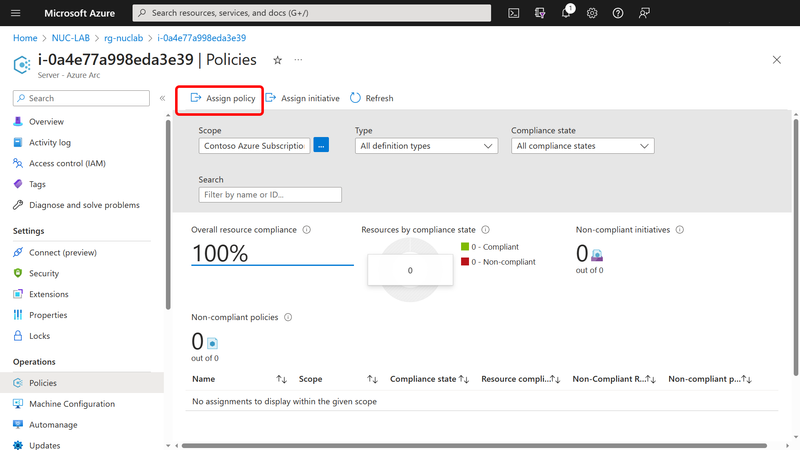

Down the left-hand side menu, scroll down to Operations and select Policies.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Arc - Assign an Azure Policy

Click on assign policy.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Arc - assign policy to machine

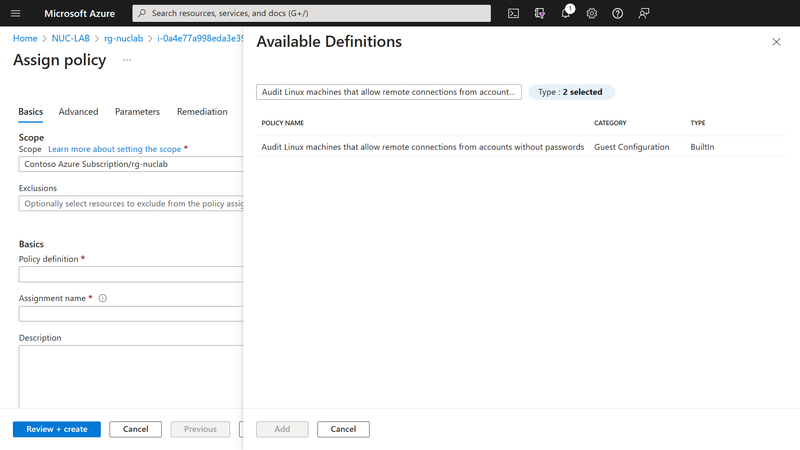

From the available policy definitions, select Audit Linux machines that allow remote connections from accounts without passwords.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Creating an Azure Policy - selecting policy

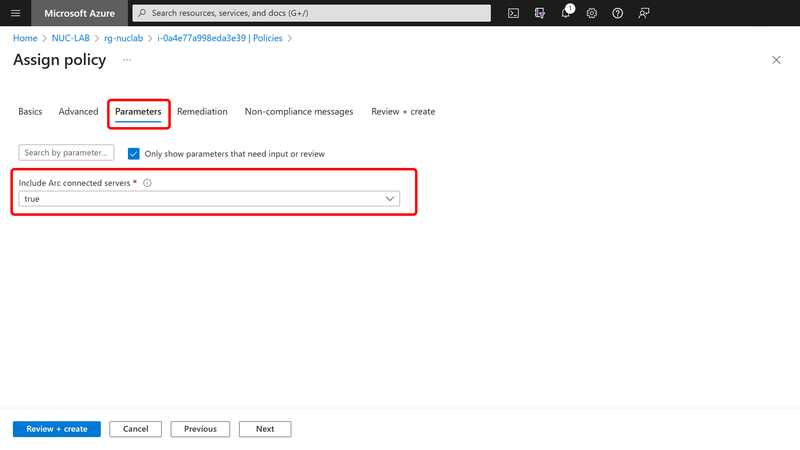

Walking through the wizard makes sure you select the option to Include Arc connected servers.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Creating an Azure Policy - include Azure Arc machines

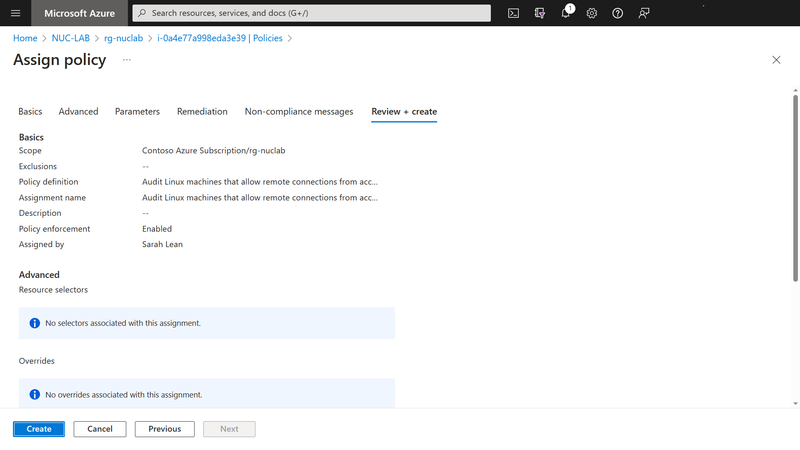

Within the next step, accept the defaults and create the policy.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Portal - Creating an Azure Policy

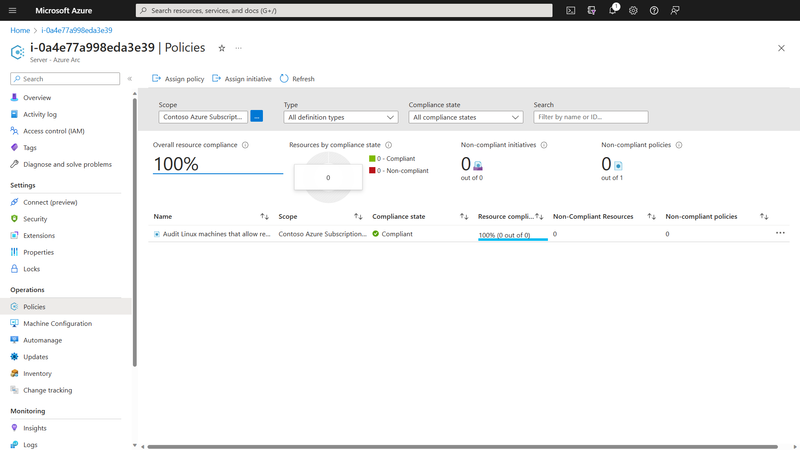

After a few minutes when you check the compliance dashboard, it will have updated with the results from the audit.

Register and Manage Linux Servers with Azure Arc Tutorial
Azure Policy - compliance dashboard

Well done! You have successfully onboarded a Linux server to Azure using Azure Arc and then assigned an Azure Policy!
